New port 9008 mainframe w 6 8350 tec modules 9000
NEWPORT 9008 MAINFRAME W 6 8350 TEC MODULES 9000

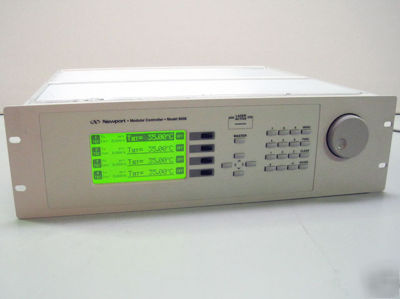

The Model 9008 Modular Controller expands on Newport s modular laser diode controller concept to meet the higher channel densities found in Dense WDM (DWDM) applications and 2-D VCSEL arrays where all the lasers have similar electrical configurations. The sixteen bays accept Combo Laser Diode Driver (LDD)/ Temperature Controller (TEC) modules.
The Combo LDD/TEC modules are designed for use in communication applications and have an internal function generator for testing systems. The user only needs to program the frequency, Imax, and Imin to modulate the laser diode output. Triangle, sine or square (50% duty cycle) waveforms are available from 200 Hz 300 kHz. This range of frequencies meets today s low frequency single-tone and high data rate test requirements for datacom and telecom.
The mainframe automatically detects which module is installed in each bay and displays the system configuration on a large LCD screen. A sophisticated processor provides enhanced system control and data collection capabilities.
GPIB/IEEE-488 and RS-232C interfaces are included with the Model 9016 for complete remote control and data collection.
The modules have the following specifications:
* TE Current: -5.000 to +5.000 A
* Short-Term Stability (1 h):<0.0005 C
* Long-Term Stability (24 h): <0.001 C
* Ripple/Noise (rms): <1 mA
* ITE Current Resolution: 0.153 mA
* Display Backlighting: Green LED
* Display Controls: Brightness, contrast (contrast optimizes viewing angle) and invert screen
* Display Type: LCD graphics display, 128 H x 240 W pixels
* Power Requirements: 90 - 132 V (max. 5 A), 198 - 250 V (max. 2.5 A), 50 - 60 Hz
* Temperature Coefficient: <0.05 C/ C
This unit was originally part of a Newport Laser Diode Burn-In system.
