Agilent / hp 1660CS logic analyzer oscilloscope
AGILENT / HP 1660CS LOGIC ANALYZER OSCILLOSCOPE
Descriptions and features: The HP 1660CS 136-channel portable logic analyzer with oscilloscope helps you get to the root cause of problems quickly, and now at a new lower price. The ability to connect to an Ethernet LAN provides an easy method of sharing data within the design team and provides remote access to the logic analyzer from a PC or workstation. A built-in 540 megabyte hard disk drive combined with the LAN connectivity now makes it possible to use the HP B3740A software analyzer for source line referencing; this is the ability to see correlated high-level C++ source code with the inverse assembled state listing.
It adds two 1-GSA/s digitizing scope channels for viewing the analog behavior of your signals. Both channels capture non-repeating events simultaneously with 8K samples per channel. Characterize critical timing parameters with time interval measurements of better than 150 ps accuracy, or examine glitches in your system to determine if noise or loading is a problem.
136 state and timing channels
100 MHz state analysis with 2 state clocks/qualifiers
Integrated 2-channel 1-GSA/s Oscilloscope
Conventional timing offers resolution down to 2 ns
Transitional timing captures data bursts separated by long time periods
Independent time and voltage markers and channel labeling
Edge, voltage level and pattern duration triggering and automatic pulse parameters

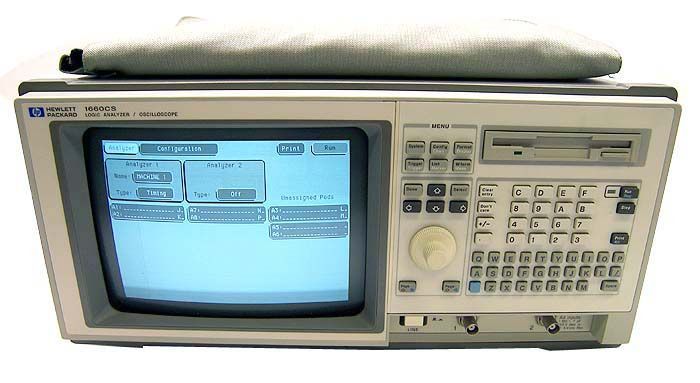

What you see in the above picture(s) is what you get
