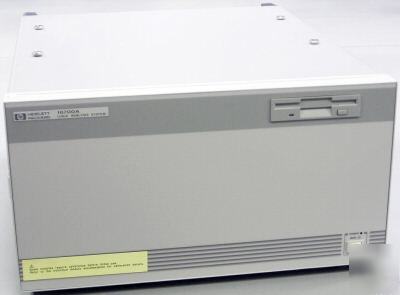

Agilent hp 16700A & 3 16557D logic analyzer mainframe
The 16700A Logic Analysis System Modular Mainframe provides comprehensive system-level debugging optimized for multiple processor/bus designs. With an on-screen setup assistant and an intuitive user interface, your design team can finally work together to solve tough hardware/software integration problems. The 16700A requires an external monitor.
The Agilent 16557D 135 MHz state and 500 MHz timing analysis module offers high performance state and timing analysis features at an affordable price. With this module, there is no need to connect special probes to view timing activity. Set up your analyzer to perform simultaneous, fully time-correlated state analysis on some channels and timing analysis on the rest.
* 6 (six) HP Probe Cables (Pods not included)
* Option 003: Performance option. Up to 160 MBytes total system RAM, 4 MBytes total video RAM
* Number of Channels State/Timing: 68
* Conventional Timing Speed: 250/500 MHz
* State Speed/Timing Speed: 135 MHz - 100 MHz
* State/Timing Memory Depth: 2M/4M
