Beige metrologic voyager scanner MS9520,serial

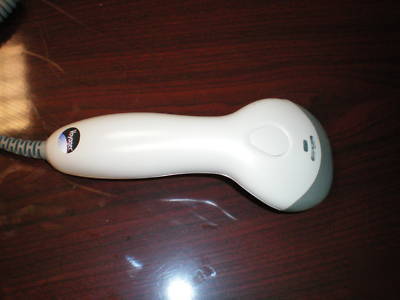

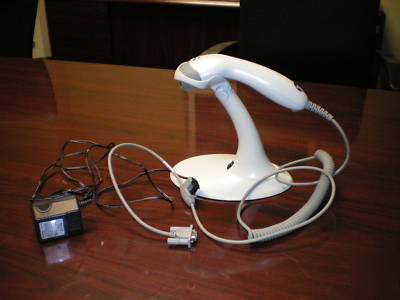

This is a beige working Metrologic Voyager Scanner MS9520 with a serial Connection, it was used 1 day for testing.All connecting cables included
OperationalLight Source: Visible Laser Diode 650 nm 10 nmVisual Indicators: Green = ready to scan; Red = good read; Yellow = automatic scanningHost System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
MechanicalDimensions (LxWxH): 198 mm x 78 mm x 56 mm (7.8 x 3.1 x 2.2 )Weight: 149 g (5.3 oz)
ElectricalInput Voltage: 5 VDC + 0.25 VOperating Power (typical): 825 mW (165 mA @ 5 V)Standby Power (typical): 600 mW (120 mA @ 5 V)DC Transformers: Class 2: 5.2 VDC @ 1 ALaser Class: Class 1: IEC60825-1, EN60825-1EMC: FCC Part 15, ICES-003, EN55022 Class B
EnvironmentalOperating Temperature: 0 C to 40 C (32 F to 104 F)Storage Temperature: -40 C to 60 C (-40 F to 140 F)Humidity: 5% to 95% relative humidity, non-condensingDrop: Designed to withstand 1.5 m (5 ) dropsEnvironmental Sealing: Sealed to resist airborne particulate contaminentsLight Levels: 4842 Lux (450 foot-candles)
Scan PerformanceScan Pattern: Single scan lineScan Speed: 72 scan lines per secondScan Angle: Horizontal: 50 Print Contrast: 35% minimum reflectance differencePitch, Skew: 68 , 52
