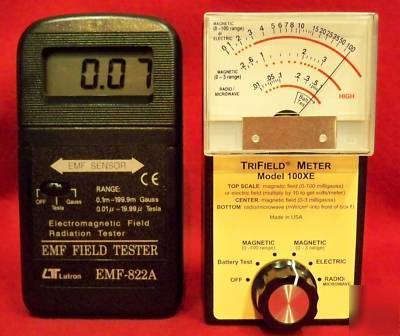

Digital emf meter 822A & trifield 100XE em & radiowaves
These two meters are used by Professional Home Inspectors to measure EMF radiation. Also used by professional and hobby Paranormal Researchers to measure variations in the EMF field associated with hauntings. Sudden erratic EMF spikes are typically believed to be indications of Parnormal activity.
SPECIAL PRICING WHILE IT LASTS: $189.90 !!!

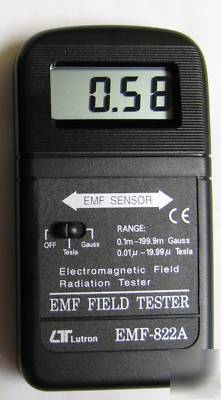

* Measurement Range: 0.1 mGauss to 199.9 milliGauss
* ELF Frequency Bandwidth Range: 30 to 300 Hz
* Affordable accurate precise digital meter!
* Certificate of Calibration included.
This meter doesn't require much introduction since it is the EMF meter that has been featured the most by TAPS on Sci-Fi Channel's GHOST HUNTERS.
Easy to operate! Just turn it on and start taking precise accurate EMF readings.
Highly recommended when detailed accurate EMF readings are needed.
Now improved with a Table Top Tilt Stand that is embedded at the back of the meter. The stand allows you to stand the meter upright and view the readings from a distance!

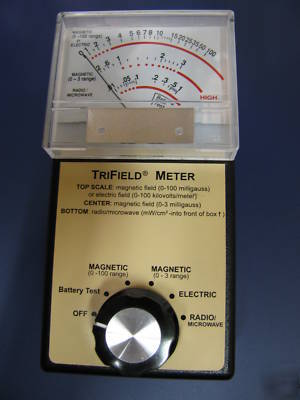

This is the Original TriField Meter that is now 100 times more sensitive!
The TriField XE100 Meter combines all the features needed for fast, accurate measurements of electromagnetic fields. It independently measures electric field and magnetic field, and is properly scaled to indicate the full magnitude of currents produced by each type of field inside a conductive body. As a result, it "sees" much more than any other electromagnetic pollution meter.
Depending on where the knob is set, the meter detects either frequency- weighted magnetic fields (two separate scales), or frequency-weighted electric fields in the ELF and VLF range. It has significant sensitivity at 100,000 Hz, well past the 17,000 Hz horizontal scan of video displays. The radio/microwave setting can detect up to three billion Hz (3 GHz), which lets you gauge radio- wave power, CB and cellular phone equipment, and many types of radars.
This meter is the only one which combines magnetic, electric, and radio/microwave detectors in one package, so that the entire nonionizing electromagnetic spectrum is covered. In addition, the magnetic setting and the electric setting measure true magnitude, a feature found elsewhere only in more expensive meters. If you hold the meter in the center of a room and tip it to various angles, the magnetic reading will stay approximately the same regardless of which way you tip or rotate it. The electric reading is similar, although the presence of your body alters the actual electric field, so readings will vary more. The radio/microwave setting reads the full power of radiowaves when the meter is pointed toward the source.
The magnetic section of the TriField meter has three field-detecting coils pointing in the X, Y, and Z directions. A circuit amplifies these signals and gives them the proper frequency-weighting (sensitivity increases linearly from 30 Hz to 500 Hz, but with some residual sensitivity up to 100 MHz). A unique network combines the three coil outputs nonlinearly to approximate a true magnitude. The meter is sensitive from 0.2 to 100 milligauss full scale at 60 Hz (or 0.1 to 50 milligauss full scale at 120 Hz, etc.) with a resolution of 0.2 milligauss in the sensitive range. Accuracy is +/-20% at mid-range.
A knob on the front has six positions: OFF, BATTERY TEST, two MAGNETIC field sensitivities (0.5-100 milligauss at 60 Hz, and 0.2-3 milligauss at 60 Hz, the second sensitivity to measure weak fields more accurately), ELECTRIC field and RADIO/MICROWAVE power density. The meter face is analog (needle type). A needle reading of one-third of full scale corresponds to either 3 milligauss (or 0.6 milligauss) @ 60 Hz, 3 kilovolts/meter @ 60 Hz, or 0.04 mW/cm2 respectively in the magnetic, electric, and radio/microwave field settings. Average magnetic field strength in North American homes and offices is 1-3 milligauss, so the meter is labeled "HIGH" above these levels.
Note: The TriField 100 Xe does come with a 9V battery installed; The Digital EMF Meter 822-A does not come with the needed 9V battery.
broken, stolen or lost in the mail.
