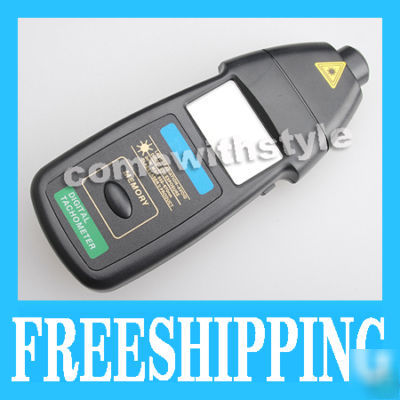

Digital laser tachometer photo sensor rpm meter tach
* Measuring RPM is safe & accurate without attachment to object
* Wide measuring rang & high resolution
* Digital display gives exact RPM with no guessing or errors
* Used the exclusive MICRO-COMPUTER LS-Icircuit and crystal time base to offer the high accuracy measurement & fast measuring time
* The last value/max. value/min. value will be automatically stored in memory and can be displayed by turn anytime
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand
5 digits 18mm (0.7") LCD w/ function annunciation
Sampling Time 0.8sec(over 60RPM)
Memory Max. value, Min. value, Last value
Time Base 6MHz Quartz crystal
Time Base Accuracy 10 10-6(0~50 C)
Circuit Exclusive one-chip of microsomputer LSI circuit
Battery 3 1.5V AAA battery (not included)
Power Consumption Approx 50mA
Dimension 184L 76W 30H(mm)
Detecting Distance 50~250mm / 2~10inch (LED); 50~500mm / 2~20inch (Laser)
Resolution 0.1RPM (2.5~999.9RPM) RPM (over 1,000RPM)
* Accessories Carrying case, Reflecting tape marks(600mm), Operation Manual
Sell for $60 and up at most retailers !
AmOptic is not responsible for any typographical errors. Prices and specifications are subject to change without notice.
