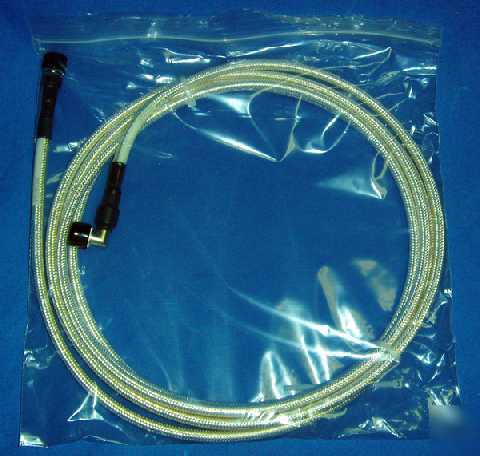

New ecs 50 ohm coaxial cable tnc male 13.5 ft sealed
ECS 50 OHM COAXIAL CABLE TNC MALE 13.5 FT NEW
Conductor: 12 AWG stranded silver plated copper
Dielectric: High temperature flouropolymer
Shield 1: Flat silver plated copper braid
Shield 3: 36 AWG silver-plated copper braid Jacket: Clear high temperature flouropolymer
Outer Diameter: 0.317 in. nominal
Weight: 8.6 lbs/100 ft nominal
Temperature Range: -55 to +200 C
Capacitance: 25.5 pF/ft nominal
DC Resistance: 1.69 Ohms/1000 ft nominal
Time Delay: 1.25 ns/ft nominal
Attenuation: 1 GHz 5.50 dB/100 ft;
(nominal) 2 GHz 7.80 dB/100 ft;
ECS avionics cables are designed to meet, or exceed, burn requirements as set forth in Federal Aviation Regulations 14 CFR Part 25.869(a)(4) Amdt 25-113, Appendix F Part I(a)(3).
They are manufactured with materials which, when subjected to flames or high temperatures, will not outgas deadly hydrogen chloride produced by conventional PVC cables.
