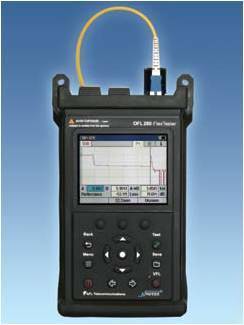

Noyes ofl 280-100 1310/1550 single-mode handheld otdr
Dual-wavelength OTDR/Loss test set for both point-to-point and PON applications
Note: All OFL280 FlexTester models come with a carry case, (1) SC and (1) FC adapter for the OTDR/OLS port, (1) 2.5 mm universal adapter for the OPM port, (1) 2.5 mm universal adapter for the VFL port, One-Click Cleaner SC/ST/FC (2.5mm), USB cable (connects with Type A USB port on your PC), and AC power adapter with a country specific power cord.
Multifunction OTDR and Loss Test Set
The Noyes OFL280 FlexTester offers an unmatched combination of fiber optic test functions, ease-of-use, portability, and value. All OFL280 FlexTester models include an integrated single-mode 1310/1550 nm OTDR with PON-optimized and standard test modes, optical power meter, 1310/1550 nm laser source, and visual fault locator.
For many users the two-wavelength OFL280-100 will provide the best balance of functionality and value. Testing at 1310 and 1550 nm is normally sufficient to certify point-to-point or FTTx PON fibers and allows the detection of macro bends. The three-wavelength OFL280-101 and OFL280-102 models add 1625 nm or 1490 nm respectively. Testing at 1625 nm allows testing of the L band. Testing at 1490 nm is required by some network operators to certify FTTx PONs. The filtered, three-wavelength OFL280-103 can certify dark fibers at 1310/1550 nm, fault-locate live FTTx fibers at 1625 nm, and measure FTTx power levels at 1490 and 1550 nm, all from a single test port.
The OFL280 FlexTester user interface provides operating modes suitable for a wide range of users and features a top-down menu structure that is both easy to learn and a pleasure to use.
OTDR test results may be saved as industry standard SOR files, which can be transferred to a PC for viewing, printing, and analysis using supplied Windows compatible software.
Compatible with all Noyes optical power meters and laser sources (OPM/OLS), including tone and wave ID features
Compatible with Noyes optical fiber identifiers (OFI)
Integrated hi-power optical power meter
Integrated visual fault locator (red laser)
1310 nm OTDR, PON OTDR, laser source (CW, wave ID, tone)
1550 nm OTDR, PON OTDR, laser source (CW, wave ID, tone)
Point-to-point cable construction and troubleshooting -
Fiber loss, splice/connection loss and reflectance, fault-location
Fiber loss, splitter loss and reflectance, splice or connection loss and reflectance, fault-location 1
Locate cable cuts, open splices, and bad connections
Rugged, handheld and light weight
Standard OTDR, PON OTDR, live fiber OTDR, and FTTx PON meter all from the same test port
1.0 m event dead zone, 3.5 m attenuation dead zone
Internal storage (>1000 OTDR traces in standard .SOR format)
High-contrast display is clear and bright in any lighting condition, including direct sunlight
Transfer test results to a PC via USB
10-hour operation, fast charge, Li-Ion battery
PON OTDR - FTTx PON construction certification
Live Fiber OTDR - FTTx service turn-up and troubleshooting
Full Auto OTDR - Normal (point-to point) fiber cable
construction testing and fault location
Expert OTDR - Full function OTDR for experienced users
Real Time OTDR - Fault location, splice verification, first connector checker
End Locator - Quickly locate breaks or measure fiber length
Optical Power Meter - Measure optical power or fiber loss
Laser Source - Measure end-to-end loss or trace fibers using the tone feature and a Noyes OFI
Visual Fault Locator - Red laser for fiber bend/break location and tracing
When ordering, specify model, OTDR port ferule type. EX. A= APC U=UPC and language Example OFL280-102U-ENG
Contact: Shel at (***)-221-3154 website: Tamge.com
Request a full pdf. spec of this product from ****@tamge.com
We rent and 'lease to own'. We also take trade-ins. See our Noyes Store -
Warranty: This brand new unit comes with a full 1 year Noyes factory .
delivery available to job site
