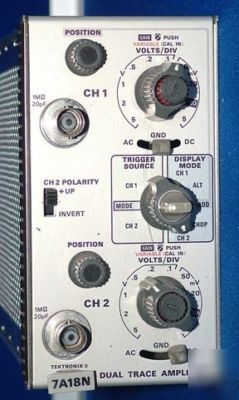

Tektronix 7A18 dc to 75 mhz dual trace amplifier
The 7A18 Dual-Trace Plug-In Amplifier is the basic building block of 3-trace and 4-trace operation. The unit features constant bandwidth for all deflection factors, 5 operating modes (Ch1, Ch2, ALT, CHOP, ADD), trigger source selectivity and color-keyed control grouping.
Polarity of Channel 2 is selectable
Deflection Factor: 5 mV/div to 5 V/div
Input R and C: 1 Mohm within 2%; approx. 20 pF
