> Pic 16F72 i/sp, 28PIN dip , 10PCS , only 1 time write

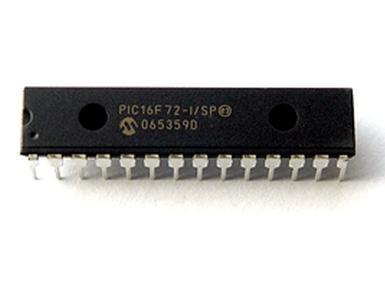

Pic 16F72 i/sp, 28PIN dip , 10PCS , only 1 time write
NO SOLDERING, ONLY INSERT SOCKET..
Only 35 single word instructions to learn
All single cycle instructions except for program branches, which are two-cycle
Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
2K x 14 words of FLASH Program Memory, 128 x 8 bytes of Data Memory (RAM)
Pinout compatible to PIC16C72/72A and PIC16F872
Eight-level deep hardware stack
Direct, Indirect and Relative Addressing modes
High Sink/Source Current: 25 mA
Timer0: 8-bit timer/counter with 8-bit prescaler
Timer1: 16-bit timer/counter with prescaler,
Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
Capture, Compare, PWM (CCP) module
8-bit, 5-channel analog-to-digital converter
Synchronous Serial Port (SSP) with SPI?(Master/Slave) and I2C?(Slave)
Brown-out detection circuitry for Brown-out Reset (BOR) CMOS Technology:
Low power, high speed CMOS FLASH technology
Wide operating voltage range: 2.0V to 5.5V
- < 0.6 mA typical @ 3V, 4 MHz
- < 1 ? typical standby current
1,000 erase/write cycle FLASH program memory typical
Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Selectable oscillator options
In-Circuit Serial Programming (ICSP via 2 pins)
Processor read access to program memory
