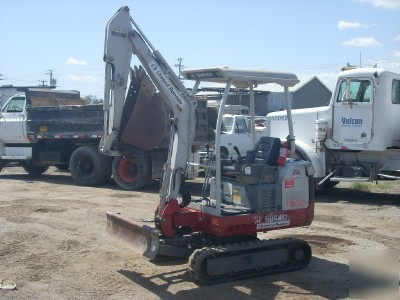

Takeuchi TB016 mini excavator 3500LBS 12" bucket
The Power of Product and Support
All Takeuchi excavators share our commitment to the highest standards in quality and
performance. They are the product of extensive research, field testing, evaluation and
refinement. The specifications and features make the TB016 reliable to own, comfortable to operate and a performance leader on the job.
When you invest in a Takeuchi, you receive over five decades of equipment innovation, the quality assurance of ISO-9001 certification and responsive after sales support from an
Try a Takeuchi and feel the power.
Quick Change control pattern selector valve
Hydraulically expandable track frame
Low and high range travel speeds
Adjustable width dozer blade
Two-way auxiliary hydraulics plumbed to dipper
Emergency engine shutdown system
Electronic engine monitoring system
Cast iron, wrap around protective counter-
Variable displacement piston pumps
Triple flanged track rollers
Spring applied, hydraulically released disc type
Precise response, proportional main control
Hydraulic and fuel sight gauges
Canopy and boom mounted work lights
ROPS/TOPS/FOPS 4-post canopy
Simultaneous operation of cab swing and two
digging functions with no reduction in working
Safety lockout of operating controls
Remote lubrication of slew and boom swing
Cushioned main boom and swing cylinders
Protective routing of bucket, arm and auxiliary
Pilot operated joystick controls
Low noise level and EPA exhaust emission
O-ring and grease seals installed on bucket pins
Uncluttered operators platform with hand and
Vandalism protected lockable fuel tank and
Lockable operator s manual and tool storage
Operating Weight (lbs)..........................................3,524
Width...................................................................3 3 / 4 3
Height.................................................................................7 5
Length (transport).....................................................12 5
Ground Clearance.........................................................8.1
Min Front Swing Radius (90 boom swing).....3 3
Tail Swing Radius..........................................................3 7
Dozer Blade (w/h)....................(3 3 / 4 3 ) / 11.8
Independent Boom Swing Angle (l/r)....90 / 50
Swing Speed (rpm)........................................................9.0
Swing Motor...........................................................Geroller
Swing Reduction.......................................Straight Drive
Swing Brake....................................................................Disc
Max Dig Depth............................................................7 10
Max Dump Height........................................................9 4
Max Reach at Ground Level.................................12 9
Max Vertical Dig Depth..............................................6 3
Max Dig Depth w/2 ft Flat Bottom......................7 8
Max Dig Depth w/8 ft Flat Bottom..................5 11
Max Bucket Dig Force (lbs).................................4,079
Max Arm Dig Force (lbs)......................................1,704
System Operating Pressure (psi).....................2,844
Pump Type..........................................2 piston / 2 gear
Hydraulic Flow (gpm)........................................................... 4.33 x 2 / 2.67 x 1 / 1.8 x 1
Auxiliary Flow (gpm)......................................................8.7
Make/Model.............................Yanmar 3TNV70-STB
Hp/RPM (SAE 1349 gross)..............13.5 / 2,200
Maximum Torque (ft-lb/rpm)................38 / 1,600
Cylinders/CID......................................................3 / 52.1
Fuel Consumption (65% of full load) gal/hr...0.50
Electrical System (volt/amp)........................12 / 40
Traction Motor Type....................................Axial Piston
Traction Drive Type..........................................Planetary
Traction Force (lbs).................................................3,801
Traction Brake Type....................................................Disc
Track Rollers (per side)...................................................3
Carrier Roller (per side)...........................................Slide
Track Type.....................................Rubber Crawler Belt
Track Width........................................................................9
Track Ground Contact Length.............................3 10
Ground Pressure (psi).................................................3.9
Travel Speed (mph)..........................................1.5 / 2.9
Maximum Gradeability................................................25
LIFT CAPACITIES (lbs) AT 6 7 RADIUS
over front, blade down over side
+5 ft...............................813...........................................813
Ground Level..........1,552.......................................1,459
-1.5 ft.........................1,799.......................................1,464
Hydraulic System (gal)..............................................8.85
Fuel Tank (gal)..................................................................5.5
Engine Lubrication (qt).................................................3.0
Cooling System (qt).......................................................3.3
Final Drives (qt) each.................................................0.37
Track frame hydraulically adjusts from 39 for travel through narrow openings to 51 for greater operating stability
Emergency engine shutdown system helps protect the engine from damage due to low oil pressure or high coolant temperature
Cast iron, wrap-around counterweight protects the engine compartment from damage when working in confined areas
downtime and service calls required to bleed
selector valve allows for quick change of operating controls between SAE and ISO patterns to
accommodate operator preferences
Variable displacement piston pumps efficiently utilize engine horsepower while continuously adjusting power and speed for fast cycle times
2007 Takeuchi Manufacturing (U.S.), Ltd. All Rights Reserved. Printed in the U.S.A. In accordance with our established policy of continued improvement, specifications and features are subject to change without notice. Pictures of excavator may show other than our standard equipment.
