Barber coleman cyqm 23061-5-2 gearhead motor - 350 rpm
Barber Coleman CYQM 23061-5-2 Gearhead Motor - 350 RPM - 14 VDC
* Brand new gearhead motor produced by Barber-Colman
* Motor /gearhead part number: CYQM 23061-5-2
* No load speed: 400 RPM @ 14 VDC
* No load current @ 14 VDC: 220 mA
* Full load speed: 350 RPM @ 14 VDC
* Full load current @ 14 VDC: 650 mA
* Full load torque output: 7.5 oz-in
* Stall current: 2.2 Amperes
* High torque output - Shaft is very difficult to stop by fingers even at low voltage
* D-Type Shaft dimensions: 1" L x .25" Diameter
* Motor dimensions (not including shaft): 3.25" L x 2" Diameter
* 2 tapped holes (10-32 thread - spaced 1.5" apart) in the motor s face allow for easy installation
* 4 outgoing leads are 6" long
* Motor operates in both directions, simply reverse polarity of red and black leads
* Two yellow leads provide an AC signal that can be used for speed monitoring
* Heavy duty all metal construction

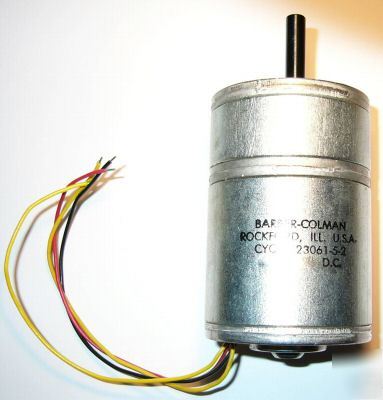

For closer detail of the motor, please click on the pictures below.
