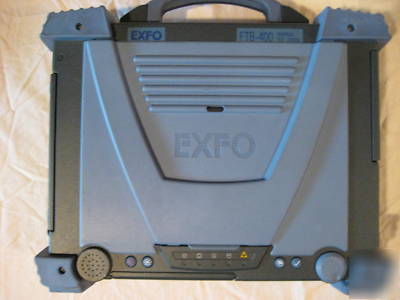

Exfo ftb-400 otdr mainframe universal test platform

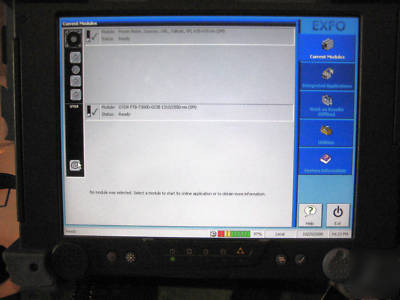

The Expo FTB-400 Universal Test System combines physical-, optical- and protocol-layer testing in a single box. Choose the two-slot configuration for OTDR, OLTS and GigE applications. In addition, use the optical switch for high-fiber-count testing and the modular printer for field reporting. A quick, simple operation lets you change configurations as needed, and the multitasking advantage lets you switch between applications as they acquire, analyze and process data. The FTB-400 platform runs powerful Windows-based ToolBox 6 software, and provides what you need for efficient, cost-effective network installation, maintenance and troubleshooting all in a rugged, splashproof platform for streamlined field testing.
Please refer to the Manufacturers website for all specifications: http://documents.exfo.com/specsheets/FTB-400-angHR.pdf

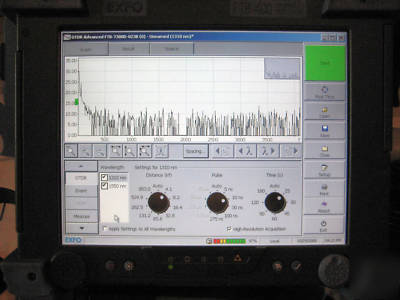

* Wavelength (nm) 1310 20/1490 10/1550 20/1625 10
* Dynamic range at 20 s (dB) 39/34/37/36
* Attenuation dead zone k (m) 4.5/5.5/5/5
* Distance range (km) 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260
* Pulse width (ns) 5, 10, 30, 100, 275, 1000, 2500, 10 000, 20 000
* Loss resolution (dB) 0.001
* Sampling resolution (m) 0.04 to 5
* Sampling points Up to 128 000
* Distance uncertainty n (m) (0.75 + 0.0025 % x distance + sampling resolution)
* Measurement time User-defined (60 min maximum)
* Typical real-time refresh (Hz) 3
* Stable source output power o (dBm) 7 (7200D), 3.5 (7300D)
* Visual fault locator (optional) Laser, 650 nm 10 nm
* CW, typical Pout in 62.5/125 m: 3 dBm (2 mW)

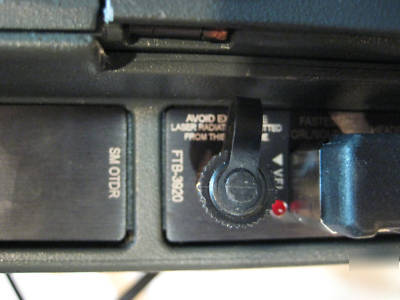

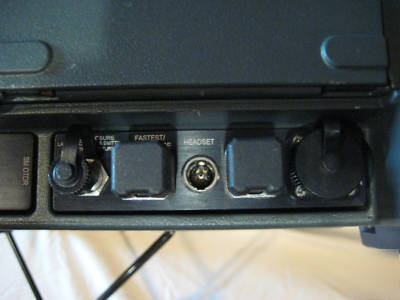

EXFO FTB-3920 Optical Multi test Module:
* 1625 nm testing provides worst-case attenuation for the L-band
* Fiber identifier detects 2 kHz signals
* Notepad feature documents power meter results in the field or in the office

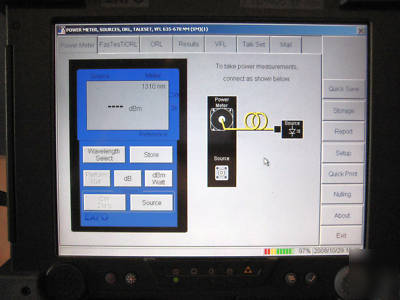

* Power meter or optical loss test set uses manual or automated operation
* Singlemode or multimode, digital talk set, offers full-duplex, hands-free communication
* Visual fault locator features 650 nm visible bright red source
* Ultra-High Power power meter models

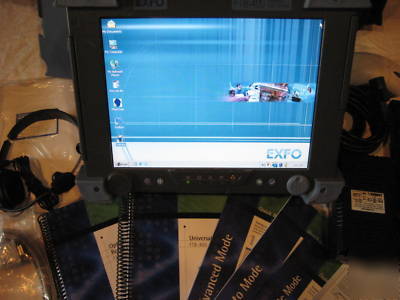

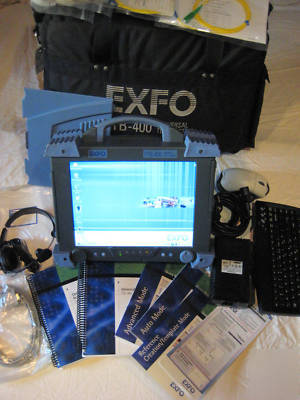

1. EXFO FTB-400 Universal Test Platform
2. (2) New Nickel Metal Batteries

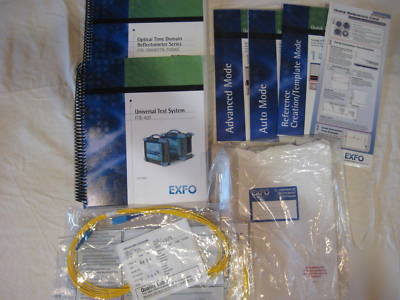

1. Full set of user's Manuals ( Modules and UTS)
1. Various Fiber Test Patch Cords
1. Tool Box 6 FTB-400 Software (CD)
1. Soft Travel case with Wheels and Telescopic Handle
