New huntington vf-175-10 angular stage conflat port uhv
This is a NEW Huntington VF-175-10 Acu-Port angular stage with 2-3/4" Conflat type flanges.

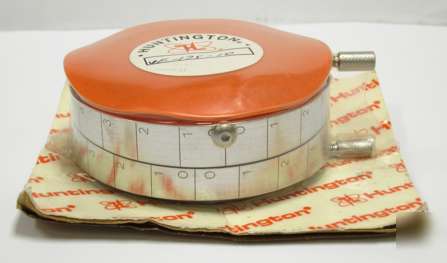

As received by us, this item was still in the original packaging as shown in the pictures. The plastic film is torn where the stage has been lifted partially away from the cardboard, but the stage has never been removed from the packaging.
This stage allows an angular tilt of the center axis of one flange relative to the other of up to 10 in any direction. This means that, with one flange fixed to a vacuum chamber, the center axis of the "tiltable" flange can be moved to any position within a cone having an included angle of 20 .
* Huntington Acu-Port angular stage
* Huntington part number VF-175-10
* 2-3/4" Conflat flanges; 1/4-28 UNF threads
* bellows sealed construction
* bellows inside diameter is 1.39"
* distance from flange face to flange face is 1.38"
Full specifications are available from the Huntington catalog and web site.
