Power one MAP55-4001 multiple-output power supply

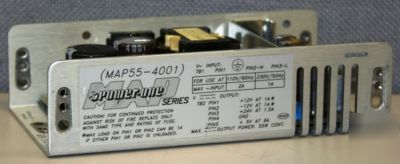

Power One MAP Series MAP55-4001 Multiple-Output Power Supply
Power-One's MAP55 Series of power supplies provides reliable, tightly-regulated DC power for commercial and industrial systems. Wide-range AC input and full international safety, EMI, and ESD compliance ensure worldwide acceptance. All units bear the CE Mark. The MAP55 utilizes a thermally efficient U-channel chassis design, which allows full power operation in convection-cooled applications. Other mechanical design innovations include metric and SAE mounting inserts on each mounting surface to provide integration flexibility. Dual-mode connectors provide traditional terminal block connections or popular single row Molex connector mating. Single-output models feature wide-range output adjustability to meet a wide variety of standard and user-specific output voltage requirements.
* RoHS lead-solder-exempt compliant
* Wide Range Input for 110/220 VAC Applications
* Meets EN55022, Conducted Class B Limits
* Compact Footprint: 6.00" x 3.27" x 1.60" (152.4mm x 83.1mm x 40.6mm)
* Greater than 225,000 Hours MTBF
* Metric and SAE Mounting Inserts
* Integral regulators available
* 55W Continuous Output Power
* Output Voltage: +5V, +24V, -12V, +12V
* Adjustment Range: 4.7-5-6V / Fixed
* Output Current: 6A, 1.5A, 0.5A, 0.5A
* Peak Output Current: 8A, 2.5A, 1A, 1A
* Line Regulation: 0.2% / 0.5%
* Ripple and Noise (%p p): 1%
* Initial Setting Accuracy: 5.0 to 5.2V, 23.0 to 24.9V, -11.6 to 12.4V, 11.6 to 12.4V
