> Tektronix TDS684A 1GHZ 5GSA/s oscilloscope 05-1F-2F-13

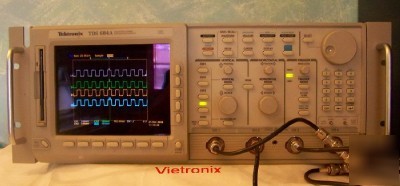

Tektronix TDS684A 1GHZ 5GSA/s oscilloscope 05-1F-2F-13
Tektronix TDS684A 1GHz 5GSa/s Oscilloscope 05-1F-2F-13
Unit Included: Rack Mounts Oscilloscope and Installed Options - 05 - 13 - 1F - 2F. It will also come with a CD-ROM of the Programming, User, Service, Reference and Technical Manuals.
The Tektronix TDS684A oscilloscope is a graph-displaying device. It draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Tektronix TDS684A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
