Ethernet modbus/tcp to modbus rtu RS485/RS232 gateway

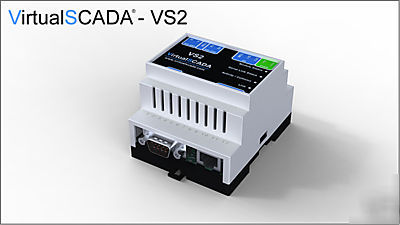

VirtualSCADA-VS2: ETHERNET MODBUS/TCP TO MODBUS-RTU/ASCII Communication Gateway for use with PLC, AC Drives, DC- Drives, Soft-Starters, Servos and any device with a MODBUS RTU/ASCII port.

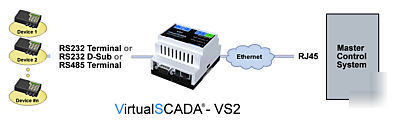

The VS2 is a high quality industrial gateway for Industrial and HVAC SCADA Applications gives users the ability to connect a Modbus/TCP master (e.g. PLC system) to one or more devices with a Modbus RTU connection. The transparent VirtualSCADA VS2 gateway will act as a Modbus/TCP slave on an Ethernet network, transform the queries to the Serial Modbus network and send back the response to the Modbus/TCP master. The VirtualSCADA VS2 can be connected to RS232 and RS485 devices and can be setup in a matter of minutes.Turn key and Ready to Use in a matter of minutes.
Check out our dedicated user manual and brochure.
For more information and documentation please visit: http:// /PRODUCTS/VirtualSCADA_gateways.htm
Easy to use web-based user interface Monitor Serial and Ethernet Communication Status
Communicate with up to 5 Modbus/TCP Masters Simultaneously with baud rate selectable from 300 to 115,200 bps
Ability to connect to the VirtualSCADA VS1 module for web-based data-logging, monitoring and programming
2 Opto-isolated Digital Inputs
