Emi emc test antenna 20MHZTO 3GHZ incl. calibrationdata

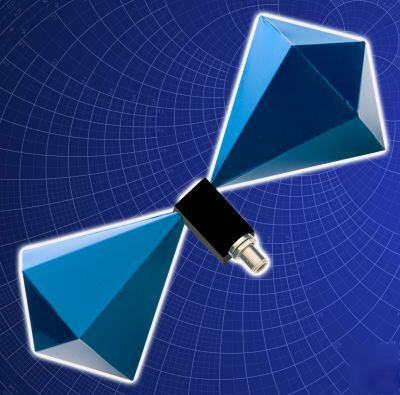

20MHz to 3GHz biconical broadband EMC Antenna
Details see manufacturers website at emf-meter.com
BicoLOG biconical EMC Antennas 20MHz-3GHz
Bikonical EMC Antenna BikoLOG Series
Visit the EMV 2008 Expo in D sseldorf
* Australian Government Department of Defence, Australia
* EADS (European Aeronautic Defence & Space Company), Germany
* Los Alamos National Labratory, USA
* University of Florida, USA
* Rohde & Schwarz Rome, Italy
* The biconical antennas of the BicoLOG series are suitable for interference field strength measurement. The specialized broadband characteristics allow measurements to be taken in the complete specified frequency range without switching.
* These antennas are suitable for measurement according to the following standards and procedures:
CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461.
* Only a single broadband antenna for the complete frequency range from 20MHz up to 3GHz
* Optimal for usage with spectrum analysers for EMC measurement
* Small weight and dimensions
* Frequency range: 50MHz-700MHz
* Max. transmission power: 1W (30dBm or 0dbW)
* Nominal impedance: 50 Ohms
* Calibration points: 70 (5MHz or 10MHz steps)
* RF connector: N (female) or SMA with adapter
* Dimensions (L/W/D): (350x160x140) mm
Specifications subject to change without notice
* Frequency range: 30MHz-1GHz
* Calibration points: 104 (5MHz or 10MHz steps)
* Frequency range: 20MHz-3GHz
* Calibration points: 106 (5MHz or 10MHz steps)
* Typical Calibration Data with up to 106 calibration points (5MHz or 10MHz steps!)
Frequency Range Aaronia BicoLOG EMC Antennas:
Examples for the utilizable frequency range:
ISM433, ISM866, Radio & TV (UKW, VHF)
VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+
CB-Radio, VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+
CB-Radio, VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+, GSM1800, UMTS, 2.4GHz WLan
