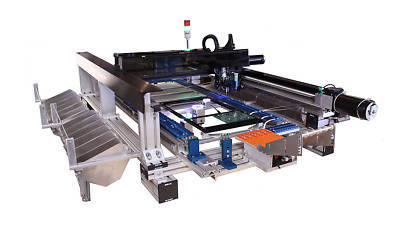

SX1020 pick and place machine
* Place speed 1000 pph, when computer vision is enabled; up to 1800 with fly vision
* Placement of 0201 and bigger parts
* Computer vision automatic centering system for IC's (SOP, QFP, BGA) and better placement of small parts,
* Servo motors and encoders for more precise movement and quieter operation
* X and Y axis 0.0005" resolution, 0.001" positioning, 0.045 rotational resolution
* Max. feeder capacity: 70 SX 8mm feeders for SX1010 and SX2010(feeders mounted at front, rear and middle); 200 SX 8mm feeders for SX1020; Vibration feeders and trays take tape feeder space
* Free feeders: twenty SX 8mm paper or plastic tape feeders included for SX1010 and SX2010, fourty included for SX1020
* Low cost additional feeders, also support DIY feeders; Additional ten channel SX 8mm paper feeder module: $500 (with mounting fixture and tape basket);
* Automatic PCB board position correction with fiducial recognition included
* Low machine profile for more stable and faster operation
* 12 month full factory warranty - parts & labor
* Easy to use graphic software for quick programming. Programming can be done with teaching video camera, on screen Gerber file graphics or CAD file
* 110V AC 60Hz, or 220 V AC, 50Hz, 250 watts electrical
* Additional up looking cameras (only fixed lens can be used on the video camera for computer vision. Different cameras should be used for small and big parts for best results. Also working speed can be improved if more cameras are placed at different locations close to feeders)
* Fly vision for faster placement
* First and second paste/glue dispensers
* Five channel vibratory feeder for tube parts
* PX4700 feeders can be installed in addition to SX feeders
* Motorized tape peeling (peeling weights will be provided if this option is not ordered)
* PCB conveyor for easy loading and unloading of PCB and inline operation
* Fast loading and unloading
* More accurate than mechanical feeders
* No feeder calibration necessary
