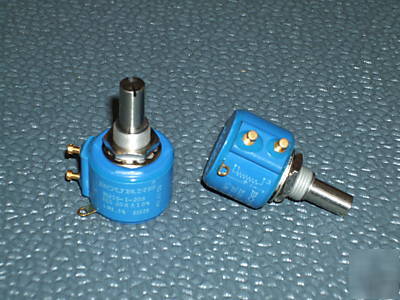

3521S1-203(2PCS)
ELECTRICAL RESISTANCE PER SECTION - 20.0 KILOHMS SINGLE SECTION
FUNCTION CONFORMITY PER SECTION - SINGLE SECTION INDEPENDENT LINEARITY
FUNCTION CHARACTERISTIC PER SECTION - SINGLE SECTION LINEAR
FUNCTION CONFORMITY TOLERANCE PER SECTION - -0.50 TO 0.50 SINGLE SECTION
SHAFT RADIAL PLAY - 0.003 INCHES
SHAFT END PLAY - 0.00500 INCHES
MAXIMUM STOP TORQUE - 96.00 INCH-OUNCES
MAXIMUM STARTING TORQUE - 0.60 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 0.60 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -200.0 TO 200.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 105.0 SINGLE SECTION
BODY DIAMETER - 0.875 INCHES NOMINAL
BODY LENGTH - 0.680 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.312 INCHES NOMINAL
SHAFT DIAMETER - 0.250 INCHES NOMINAL
SHAFT LENGTH - 0.812 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 1800.0 NOMINAL
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 1800.0 NOMINAL
SCREW THREAD DIAMETER - 0.375 INCHES NOMINAL
TERMINAL LOCATION - LONGITUDINALLY POSITIONED ON THE CIRCUMFERENCE
III OVERALL LENGTH - 1.492 INCHES NOMINAL
III OVERALL DIAMETER - 1.136 INCHES MAXIMUM
