4.75" wotan cnc table type horizontal boring mill

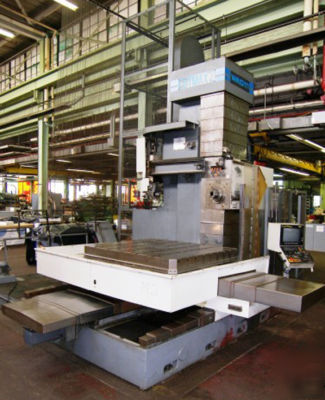

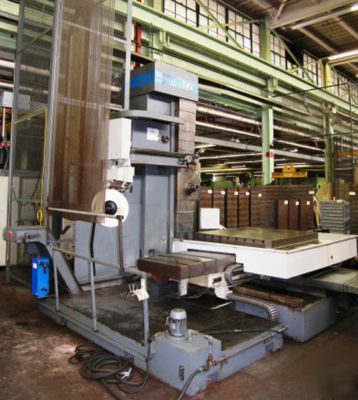

4.75" Wotan CNC Table Type Horizontal Boring Mill

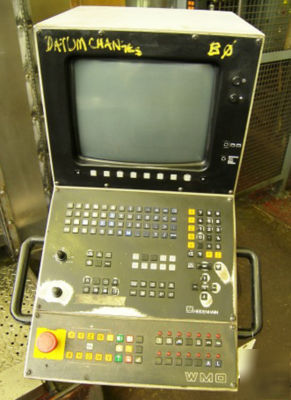

Heidenhain TNC 415 4-Axis CNC Control
Spindle Diameter ...................... 4.75"
Spindle Taper ......................... #50 CAT
Vertical Head Travel, Y-Axis .......... 66.93"
Cross Travel Of Table, X-Axis ......... 70.86"
Spindle Travel, Z-Axis ................ 23.62"
Column Infeed Travel, W-Axis .......... 53.5"

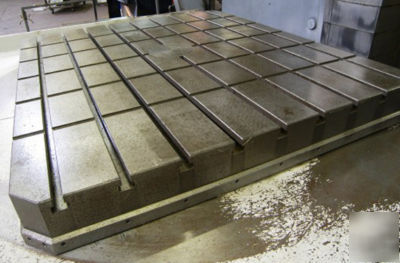

Table Size ............................ 55.11" x 62.99"
Spindle Speeds: Inf. Variable 3-Ranges 20-3000 RPM
Table Weight Capacity ................. 13,000 lbs.
Table B-Axis .......................... 360,000 Position
5 Axis Heidenhain TNC 415 With Tool Management

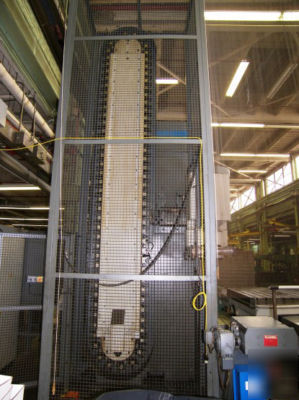

80-Position Automatic Tool Changer
Full B-Axis Built In Rotary Table
Probe System with Heidenhain Probe
AC Controlled Spindle & Axis Motors
Steel Sliding Way Covers on X, Y & W Axis
40 HP (30 KW) Spindle Drive Motor
Floor Space: 13' x 22' x 13' High
