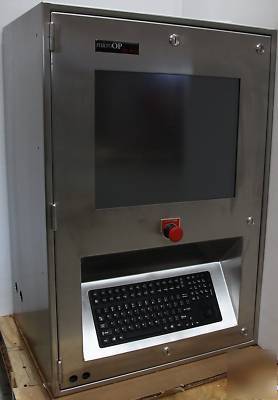

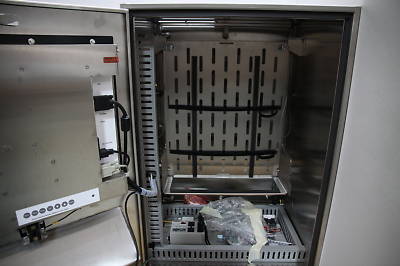

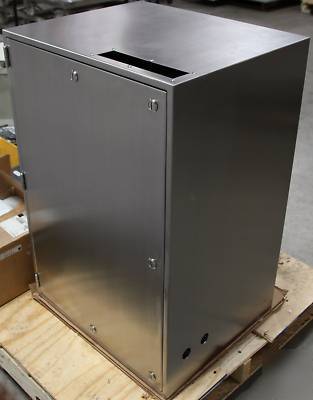

Acc microop in-wall operator's station terminal panel

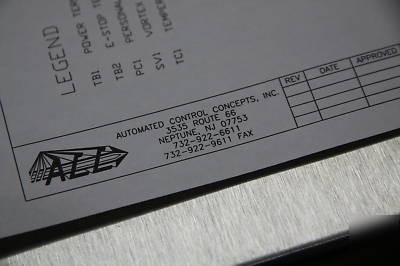

* Make: ACC (Automated Control Concepts Inc) / microOP
* Model: In-Wall micro-OP (microOP)
* Make: IED (Industrial Displays)
* Model / Part #: FPM-190/OFT
* Manufacture Date: 3/2006
* Make: Texas Industrial Peripherals / iKey
* Model / Part #: 5K-OEM-PS2
* Serial #: BAK021606006539
* Description: Operator's Panel
Here is some information on the overall system...
Among the world's leading manufacturers of industrial computer stations and mountings, we can design an operator interface to function in your application - regardless of your environment.
Whether hazardous conditions or a specialized application, OP/Station's products are designed to offer unprecedented flexibility, creating unique solutions to ensure a safe, secure, and reliable operation. The OP/Station family is a flexible product line, which allows you to purchase all or part of a complete workstation solution.
microOP's online product page is located at http:// /
Here is some information on the LCD panel...

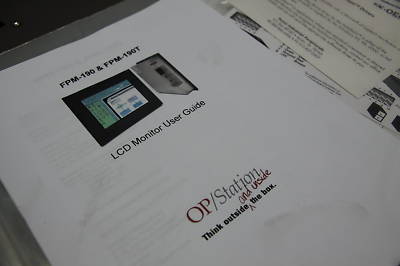

* FPM-190 & FPM-190T - Panel Mount 19" LCD Monitor
* Various Panels / Performance
* PiP Support .. [See FPM-191]
* Serial Or USB Touch interface
Replacing our immensely popular FPM-180 series of 18" LCDs.. The New FPM-190 takes Performance, Reliability and Flexibility to a new level.
* Building on a solid foundation. We have added flexibility beyond our expectations.
* Multiple Panel Support - Be it cost or performance we have a LCD configuration to meet you needs.
* Multiple Controller Support - 3 levels of LCD controller options allow us to meet any video input requirements
* Rear or Remote Control - Based on your application / ergonomic needs we have the controls configuration.
* Multiple Bezels - Aluminum Powder Coat, Stainless Steel, or Plastic.
* Power - Standard DC options..
* Our "No Name" Black bezel is perfect for OEM applications, and Stainless Steel is also available. If you need a special color or finish please ask.

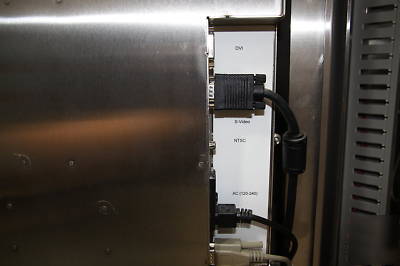

* VGA / DVI / S-Video / NTSC .. Video inputs
* Machined .250" Thick Aluminum Bezels NEMA 4/12 Construction
* Plug N Play VGA Interface AutoAdjust On Power Up
* Multi LCD Panel Support Fixed Mechanical Format
* 0.00" Cable Exit Bright Screens Standard
* Direct CRT Replacement Analog RGB Input
* Touch Screen Standard Stainless Steel Bezels Standard
* Rear or Remote Screen Controls Wide Viewing Angel
* Video Range: VGA, SVGA, XGA, SXGA
* Viewing Angle U/D: 85o / 85o
* Viewing Angle L / R: 85o / 85o
* Bezel / Finish: Aluminum With Black Textured Powder Coat (others available)
* Stainless Steel Bezel. Machined 304 SS with #4 Vertical finish
* Main Chassis: 16ga. Stainless Steel
* Power: 90~264 VAC 50/60 Hz. / 24 VDC
* Screen Controls: Front Rear Remote
* Installed Depth......... 2.15/16" Nominal
Industrial Display's online product page is located at http:// /New_Web_Pages/190/FPM_190.htm

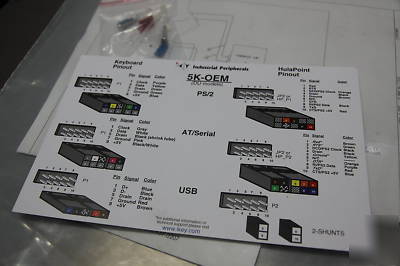

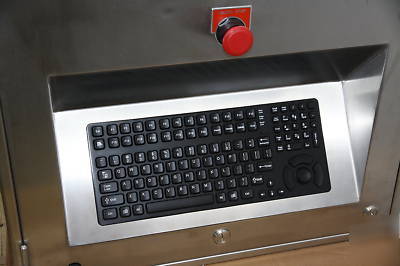

Here is some information on the keyboard...
5K-OEM - OEM Keyboard with Integrated HulaPoint II
The 5K-OEM combines a 113-key keyboard with HulaPoint IITM, an upgraded pointing device that offers improved sensitivity and increased durability, for a single, fully integrated unit. Each kit is comprised of an industrial silicone keypad, switch matrix board, keyboard controller and cables.
* Certifications: NEMA 4X / UL60950, FCC Part 15 Class B
* Power: PS2: KEYBOARD: 50mA@5V (from Keyboard port) / HULAPOINT: 35mA@5V (from Mouse port) / USB:85mA@5V (from CPU port)
* Temperature Range: STORAGE: -40C to +70C / OPERATING: -20C to +60C
* Humidity: 100% (when properly installed)
* Shock: 3x11 ms pulses of 50g on each of 3 axes
* Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz / FREQUENCY RANGE: 20Hz - 2 kHz / DURATION OF TEST PER AXIS: 3 hours
* Weight: 1.5 lbs (0.68 kg)
* Dimensions: 15.00" x 6.50" x 0.42" (w-h-d): 381.0mm x 165.1mm x 10.7mm
* Cable: LENGTH: 10 feet (3 meters) / DESIGN: "Y" PS/2 or AT/Serial Cable (providing separate keyboard and mouse connections), or Single-Cable USB
* Compatability: PS/2 KEYBOARD/HULPOINT: All Windows Operating Systems
