Brandt optimat kd 56CP 3MM edgebander, 2002, 3PH, vgood

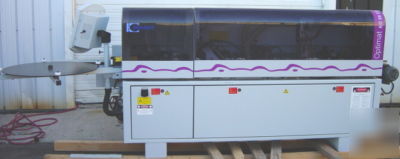

Brandt 3mm Edgebander with Contour Profiling

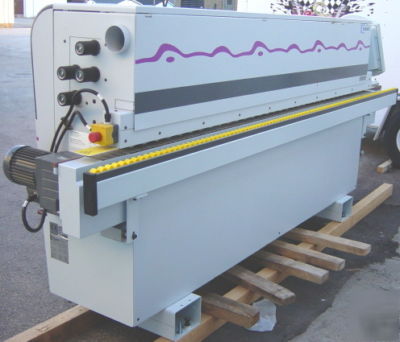

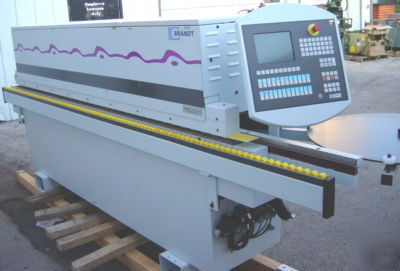

Item is in very good condition over all. The one smaller sound enclosure / safety door has a good 5 inch or so break in the plexi. Somebody who moved it before us had put a metal strap around the door to hold it. I think they put too much pressure on the door and broke it. I think I found just one good 3 inch scratch in the paint. Otherwise very sharp machine and pretty clean overall. Model Optimat KD-56 CP 2002, Serial 0-261-02-8667 Equipped with PC-16 Program Control Panel Automatic height adjustment with top pressure beam for all work stations. Equipped with digital height indicator for operator convenience. Working height of 33.5" Large Coil Table (800mm Diameter) to accomodate 3mm PVC coils. Automatic magazine for strip and coil feeding. Panel edge pre-heating system. Hotmelt granulate glue application system with approximate 12min. heatup time. Automatic reduction of glue temperature if not run within 15 minutes. This feature lowers the temperature to approximately 150 degrees C. Re-heat time is approx. 2.5 minutes. Strengthened pre-cutter for cutting 3mm PVC from the coil. Edgeband thickness capacities - strips: .4 - 3mmColied material: .4 - 3mm Minimum strip length 9". Panel length minimum 5 1/2", Panel width minimum 2 3/8", Panel thickness minimum 5/16", Panel thickness maximum 1 5/8". Feed speed of panels fixed at 30 FPM. First pressure-roller driven and one idle pressure-roller equipped with digital setting system. High Frequency Trimming motors on all trimming stations. Double motor end trim unit for precision trimming with tilt range from 0-15 degrees. Program controlled indexing from straight to bevel end trimming. (2) .25HP 12,000 RPM motors Fine trimming unit equipped with digital counter for easy changeover. Tiltable from 0-15 degrees. Straight or 3mm radius cutters can be used. Program controlled indexing. (2) .33HP 12,000 RPM motors Contour trimming unit with program controlled indexing. .5HP 12,000 RPM motor Buffing unit. Workpiece support track extendable to 19.5" Electronic frequency changer for all trimming motors, with also includes electronic motor braking. Amperage requirements: 20 Amps @ 230V, 10 Amps @460V Electrical connections: 208/230/440/480, 3PH Dust Extraction requirements: 4" Port, 600CFM Compressed Air requirements: .18 CFM per panel, 6 bar (85PSI). Machine footprint max. 12' 10" x 45", height 53 3/4" Machine weight 1980lbs. Electrical components according to UL/CSA listings.
