Hull lyophilizer/freeze dryer 140 sq. ft.

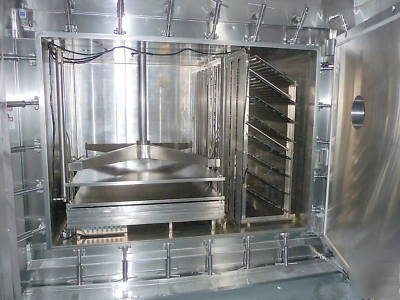

Inside: 86 in. Wide x 67 in. Deep x 62 in. High
Shelves Size: 48 in. Wide x 60 in. Deep Area: 140 Sq. Ft.
Normal shelf clearance: 7 usable shelves with a clearance of 5 in. between shelves.
Latched shelf position: 3 usable shelves with a clearance of 11 in. between shelves and 1 shelf with a clearance of 5 in. between the shelf.
Stoppering Mechanism: Hydraulic / Downward Movement

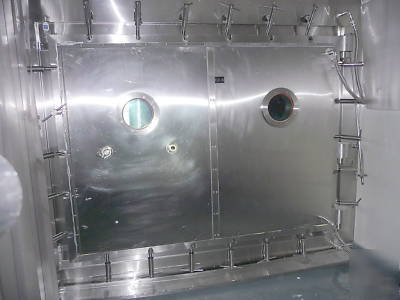

Chamber door: 304L stainless steel, water-cooled
8 plates Ice Capacity: 275 liters A. Steam and / or Hot Gas Defrost

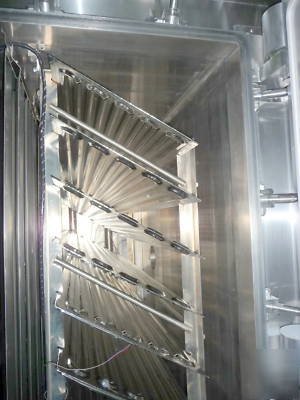

Condensing Plates: 304L stainless steel
Shelf Refrigeration Condensing Unit: 7 HP, two stage

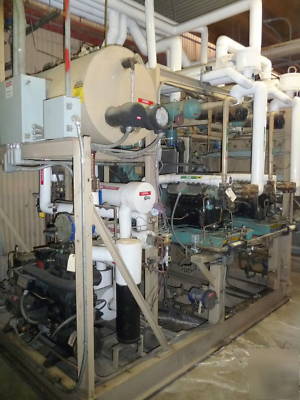

Condenser Refrigeration Compressor: (2) 30HP, two stage

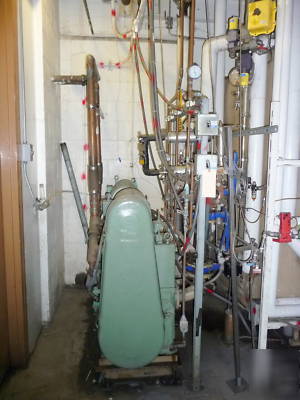

Vacuum Pump: (2) 71/2 HP at 150 CFM (Free Air Displacement)
Liquid Ring Pump: 3 HP at 50 CFM (free Air Displacement)
Heat Transfer Fluid Circulating Pump: 1 HP

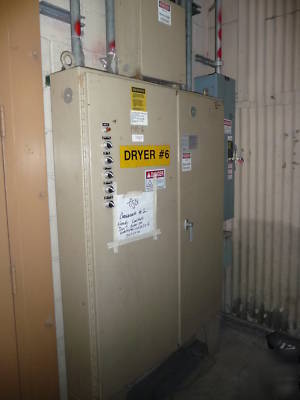

Stepdown Transformer for 115 Volt, 1 Phase 60 Cycle Control Circuit \Service Amperage Required: 165 amps
Cooling Water-150 GPM minimum to 255 GPM Max. at 75 degrees F
Sterilization Medium-Clean Steam
Compressed Air-80 to 110 PSIG max. (approx 0.2 SCFM)
Compressor Inlet ? 120 GPM at 85 degrees F water temp. max.
Compressor Outlet ? 120 GPM at 95 degrees F water temp. max.
Chamber Sterilization ? approx. 490 lb/hr for 1 hour heat ? up to 260 degrees F
Condensing Plate Defrost ? approx. 330 lb / hr for 1 hour defrost of 275 liters of ice from -70 degrees C to +20 degrees C
Shelf Temp Range -45 degrees to +70 degrees C
Condenser Temp at Blankoff -70 degrees C

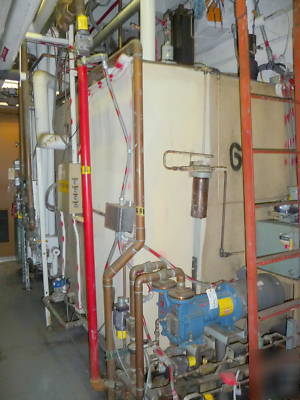

Freeze Dryer is currently installed on location at pharmaceutical plant in Los Angeles, CA. Can set up appt to view upon requests.
