> New 1" britain 6-spindle automatic screw machine #23527
New 1" britain 6-spindle automatic screw machine #23527

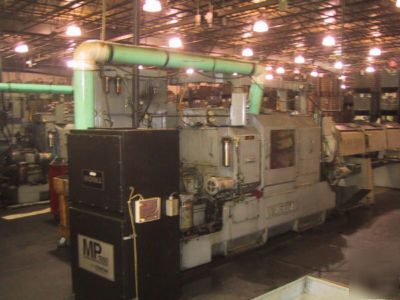

1" NEW BRITAIN 6-SPINDLE AUTOMATIC SCREW MACHINE
New 1970, Serial No 36996, Model 51
Acro-Feed 6-Spindle Bar Feed Unit
(Model No 1B6-14DR, S/N 774429)
Number of Spindles..................... 6-SPINDLE
Bar Capacity, Round.................... 1" 25.4MM
Bar Capacity, Square................... 11/16" 17.4MM
Bar Capacity, Hexagonal................ 7/8" 22.2MM
Stock Feed Length, Maximum............. 5" 127.0MM
Tool-Slide Travel, Maximum............. 4" 101.6MM
Lower-Slides Travel, Maximum........... 1-3/4" 44.4MM
Lower-Slides Feed, Maximum............. 1" 25.4MM
Middle Slides Travel, Maximum.......... 1-3/4" 44.4MM
Middle-Slides Feed, Maximum............ 1" 25.4MM
Upper-Slides Travel, Maximum........... 1-3/4" 44.4MM
Upper-Slides Feed, Maximum............. 1" 25.4 MM
Spindle Speeds, Range.................. 285 to 4470 RPM
Motor Horsepower....................... 20 HP
Overall Machine Length, w/Bar-Feed..... 18'3"
Overall Machine Depth.................. 3'4"
Overall Height......................... 5'6"
Weight, Approximately.................. 10500 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $9,950.00
