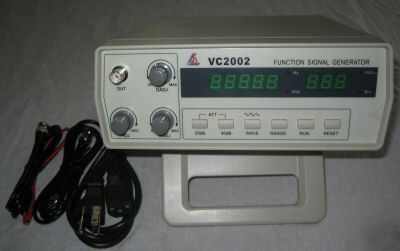

New function signal generator (0.2HZ - 2MHZ) - VC2002
New Function Signal Generator (0.2Hz-2MHz) - VC2002
* Output wave-form such as sine, square, rectangle, sawtooch and triangle waves.
* frequency and amplitude can be adjusted.
* Power supply: 110V/220V 50Hz/60Hz
* Size: 270mm x 215mm x 100mm
* Frequency range: 0.2Hz ~ 2MHz. Seven ranges:
0.2Hz ~ 2Hz, 2Hz ~ 20Hz, 20Hz ~ 200Hz, 200Hz ~ 2KHz, 2KHz ~ 20KHz, 20KHz ~ 200KHz, 200KHz ~ 2MHz.
* Output signal wave form: sine, square,rectangle, sawtooch and triangle waves.
* Output signal amplitude (peak-peak value):
Non-attenuate (2Vp-p ~ 20Vp-p) 20% continuously adjustable.
Attenuate 20dB (0.2Vp-p ~ 2Vp-p) 20% continuously adjustable.
Attenuate 40dB (20mVp-p ~ 200mVp-p) 20% continuously adjustable.
* Function output symmetry adjust scope: 20% ~ 80%
* Sine wave distortion : less than 2%.
* Triangle wave linear: more than 99%.
* Square wave rise edge times: less than 100ns.
* Square wave fall edge times: less than 100ns.
* Square wave rise and fall pulse: less than 5%Vo.
* Measurement error: less than 0.5%.
Function signal generator, manual, power cord and test probe.
