Pool cue cnc router machine mill - lathe & indexor

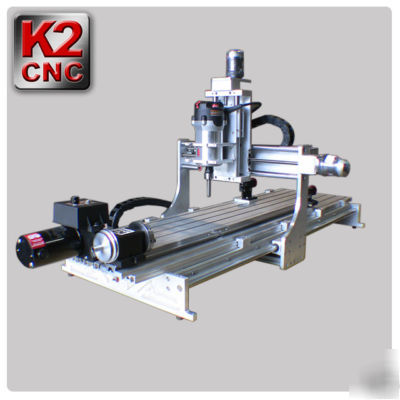

New KTS-4014 Servo Combo. 40" x 14" of Travel.
Travel of Longest Travel (X)40" x (Y)14" x (Z)5.5"
Version 2009 Shaft linear motion Servo motors and controller
The new KTS-4014 was designed with the cue makers in mind. The machine has 20mm shafts, anti-backlash nuts, 19 inch material capacity. You can freely cut a length of 40". The long direction T-sloted table top allows for easy adjustment of the tail stock. the machine can accurately position 0.00035" and has a anti-backlash nut.
+ New KTS-4014 Frame (Shaft linear motion), + leadscrews .200" pitch and anti-backlash nut.
+ Rotary Indexor, 4 jaw chuck, and tailstock.
+ Lathe, 4 jaw chuck, and tailstock, adjustable from 2" to 5in from lathe and 25 to 32". There is a break in the guide ways.
+ Table Top with T-slots (2 inches apart, uses 1/4-20 nuts and screws) - Retails $350
+ Porter Cable 892 Router 24K Max RPM
+ Porter Cable 892 precision collet kit with .125" and .250" bit capacity. Run-out of .0005"
+ X, Y and Z Home switches. Use these to home the machine using Mach3.
+ Settings for Mach 3 with K2 machine profile CD/email and settings for gecko drives.
+ Include full version of Mach 3 software with license.
+ Used computer with (No monitor) with a 90 day warranty.
+ CAD software - Prices from $199, $700, to $7000 +
+ CAM software - Starts at $199, $995, to $7000+
* Strong and Quite Servo motors with encoder.
* All Axis uses Kert Lead Screws and Kert Anti-backlash Nuts .20Pitch 2 start.
Special misting, tools, proper feed rate, proper technique may be required if used to cut aluminum and other non ferrous metals.
16mm shafts on 40" travel axis Y.
X and Y Direct drive coupler with anti-backlash.
Anti-Backlash Nuts on all axis.
+ 14" Axis 250 - ipm Max recommended Traverse. Default setting on Mach from K2.
+ 40" Axis 150 ipm Max Traverse. Default setting on Mach from K2.
+ X=47"or longer (table supports 30").
+ Y=19" (side column clearance).
+ Machine bottom X=47" Y=35" Z=24.5"
+ Machine top X=47" Y=35" Z=24"
+ with Motor top X=53" Y=38.5" Z=28"
Other available routers sold by K2CNC
Included Porter Cable 892 and 690
Included Control Box 3 axis Servo.
Please Add $35 for residence. Prices and specifications subject to change without notice. Not responsible for typographical errors. Machine shown with optional equipment.
