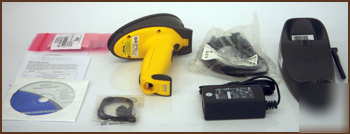

Symbol P370 cordless scanner kit K370-SR1001100USR
Symbol P370 Cordless Scanner Kit K370-SR1001100USR
7.0 in. H x 9.2 in. W x 3.5 in. D/17.8 cm H x 23.1 cm W x 9.0 cm D
P370: Yellow body with dark gray keypad
P470: Cash register white body with light gray keypad
17-key keypad; single stroke numeric and shifted alpha; user-programmable function keys
2-line x 20-character; view long lists/menus using scroll keys with MCL application
1100 mAh Lithium-ion battery charged via the cradle
Fully charged (100%) in approximately 3.5 hours
35 5 scans per second (bi-directional)
P370/470: 20% minimum reflectance
P370ALR: 40% absolute dark/light reflectance at 650 nm
UPC/EAN, Bookland EAN, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 93, Codabar, Interleaved 2 of 5, Code 128, EAN 128, Discrete 2 of 5, MSI Plessey and Coupon Code
RS-232, MCL-Link Lite or Symbol Synapse cables (Keyboard wedge, USB, OCIA, Dual RS-232, etc.)
P370: -4 to 122 F/ -20 to 50 C
P370: Multiple 6 ft./1.8 m drops to concrete over entire temperature range
P470: Multiple 5 ft./1.5 m drops to concrete over entire temperature range
P370: All components sealed to IP54 against windblown rain and dust
Sunlight: 10,000 ft. candles/107,644 LUX
Artificial light: 450 ft. candles/4,844 LUX
Sunlight: 4,000 ft-candles/ 43,056 LUX
Artificial: 450 ft-candles/4,844 LUX
Default Application (Preloaded):
Transmit scanned or keyed in alpha-numeric data; key in quantity to eliminate repetitive bar code scanning
Windows-based application development software for creation of customized P370/P470/P360/P460 scanner applications
Communications software used with MCL-Designer-generated applications enables seamless connection to host application for task automation, ODBC connectivity, real time text messaging, built-in CRC error detection and more
Up to 100 ft./30 m without a direct line of sight; coexists with Spectrum24 systems
2.4 GHz point-to-point narrow band, 82 user-selectable channels
PL370 Dark Gray ; PL470 Light Gray
3.5 in. H x 9.5 in. L x 4 in. W / 8.9 cm H x 24.1 cm L x 10.2 cm W
Operates from a separate 9V power supply 1.2A
RS-232 or Symbol Synapse cables
Certification to UL1950, CSA C22.2 No. 950, EN60950/IEC950
FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA
