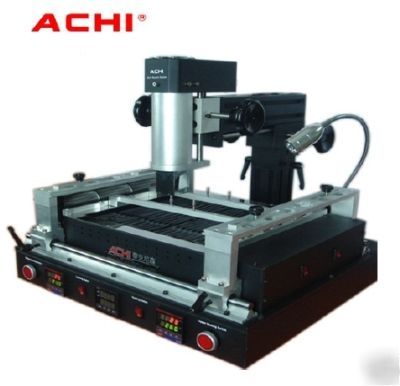

Achi hr-pro hot air infrared bga xbox rework station
ACHI HR-PRO BGA Rework Station is NEW Production, it is IR Heating, suitable for CBGAC.CGA, CSP,QFN,MLF,PGA and All the green epoxy type .BGA chip Welding Equipment mainly for notebooks, pc, switches, XBOX and other game consoles etc
1. Using mature upper hot air, infrared heating system at the bottom. Closed-loop control, temperature control system is simple and easy to operate.
2. Temperature control system uses a continuous heating (no sub) mode. Better ensure the success rate of welding (welding success rate is almost 100%). Can easily deal with lead-free solder rework.
3. Use of innovative design, do not need to connect your computer can be very convenient to operate. Welding is completed with alarm function.
4. can easily rework the variety of CPU's seat, all kinds of shielding enclosures,
5. Can replacement of various components slot.
7. BGA Rework station can Circuit board drying and shaping circuit board Preheat the bottom area of 260mm 245mm (can rework _ 400mm 305 mm circuit board), with the slide bracket and the Taiwan-based cross-flow cooling fan to ensure the PCB board rework process is not deformed.
8. production process owners to give full consideration to the actual situation in the maintenance, and reduce unnecessary auxiliary functions, greatly reducing the cost, making high-quality, high success rate, cost-effective platform for BGA rework
9. Random with product manuals, hand-planted the ball manuals and on-site video presentation CD-ROM. The information easy to understand, combined with the platform ease of use, even if you have never engaged in BGA rework can be quickly mastered the technology
10. product warranty for three years, the first year free warranty Second / third years, just charge for Accessories cost.
Size: 475 mm 480 mm 420 mm
We also have IR3000, IR-PRO, HR-PRO, and all spare parts like bottom heater, temperature sensor, LED lamp, PCB support, and so on. The specification is as follow, if you want order other model, Pls contact us: ****@hotmail.com
ACHI BGA Rework Station Performance Contrast:
Slide Guide,Abnormal Shape Bracket
