Barcopac M226 mgo thermocouple k-type dual elements
BARCOPAC (BARBER COLMAN) MgO THERMOCOUPLE MODEL M226-60019-000-4-09
THIS IS A "K-TYPE" THERMOCOUPLE WITH DUAL ELEMENTS WHICH HAVE UNGROUNDED ISOLATED JUNCTIONS

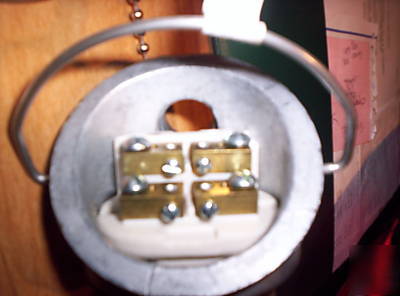

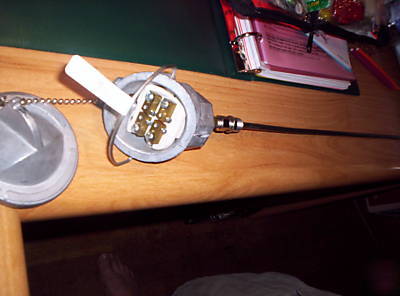

THE 0.250" DIAMETER INCONEL 600 PROBES ARE 19" LONG TO THE BASE OF THE MOUNTING HUB, WITH A GENERAL PURPOSE ALUMINUM HEAD AT THE COLD JUNCTION

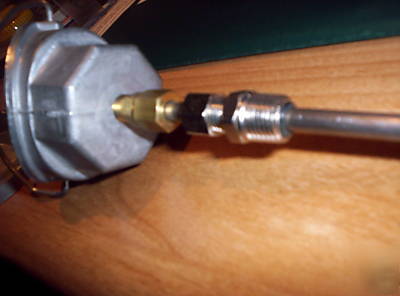

THERE IS A 1/4" NPT NICKEL PLATED BRASS COMPRESSION FITTING FOR INSERTION INTO YOUR GREENHOUSE, YOUR PROCESS PIPING, FURNACES, OVENS, OR DAY TANKS. MAXIMUM TEMPERATURE OF 2100 DEG-F.
CAN BE USED DIRECTLY WITH TYPICAL HAND-HELD DIGITAL VOLT METER WITH THERMOCOUPLE INPUTS, OR A STANDARD TEMPERATURE PANEL METER (COULD BE FUN FOR A SCIENCE PROJECT WITH THE KIDS)
PLEASE SEE OUR OTHER LISTINGS FOR THE TEMPERATURE CONTROLLERS THAT WILL CONNECT TO THIS DEVICE
