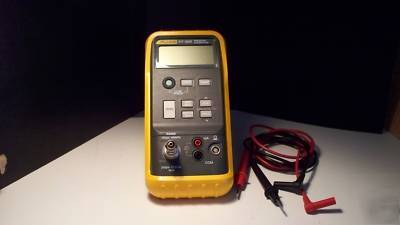

Fluke 717 100G pressure calibrator digital meter
IT IS LIGHTLY USED IN EXCELLENT CONDITION
THE ITEMS IN THE PICTURES ARE EXACTLY WHAT YOU WILL RECIEVE
Each calibrator will measure or source one parameter at a time. Additionally, the 717 will simultaneously measure pressure and mA. The 717 will deliver 24 volt loop supply while measuring mA.
* Temperature from Thermocouple output
* Pressure, 0.05% of full scale
* Temperature from RTD output
* Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
* Pressure, 0.05% of full scale with internal 30 psig sensor
* Pressure, 0.05% of full scale with internal 100 psig sensor
* Calibrate P/I transmitters with simultaneous pressure and current measurement
* Measure pressure and vacuum to 0.05 % of full scale with internal 30 psig sensor (717 30G) or internal 100 psig sensor (717 100G)
* 1/8 inch NPT female pressure fitting
* Compatible with non-corrosive gasses and liquids
* Measure pressure to 10,000 psi/69 mPa using one of 29 Fluke 700Pxx Pressure Modules
* Measure mA with 0.025 % accuracy and 0.001 mA resolution
* Select 11 different engineering units
* Zero, min, max, and hold functions
