New sgs-thomson gs-D200S bipolar stepper motor drive
SGS-THOMSON GS-D200S BIPOLAR STEPPER MOTOR DRIVE NEW

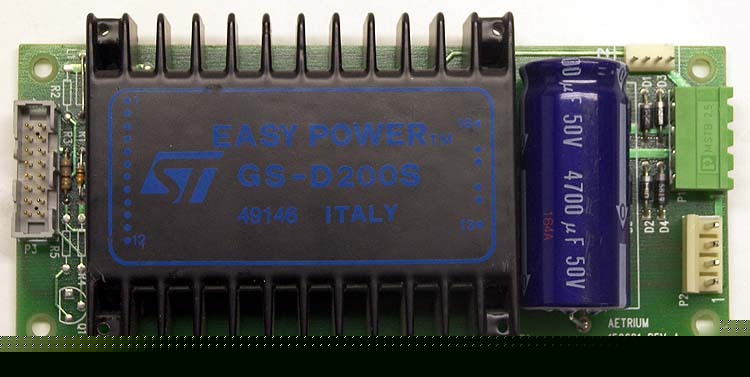

SGS-Thomson GS-D200S Easy Power Bipolar Stepper Motor Drive Module with Power Souce Assembly From Aetrium / 150681
Full/Half step drive capability
Logic signals TTL/CMOS compatible
Programmable motor phase current and chopper
Selectable Slow/Fast current decay
Synchronization for multimotor applications
The GS-D200 and the GS-D200S are drive modules
that directly interface amicroprocessor to atwo
phase, bipolar, permanent magnet stepper motors.
The phase current is chopper controlled, and the
internal phase sequence generation reduces the
burden of the controller and it simplifies software
The GS-D200 uses bipolar power outputs while the
GS-D200S has powermos outputs to significantly
reduce both commutation and conduction losses.
A further benefit offered by the GS-D200S is the
complete protection of the outputs against any type
