> 12.6" x 40" toyoda GUP32X100 universal id/od grinder
12.6" x 40" toyoda GUP32X100 universal id/od grinder

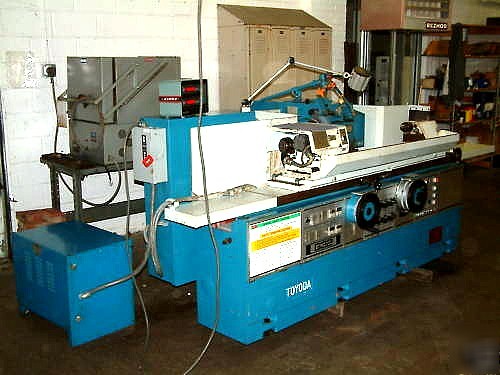

12.6" x 40" TOYODA GUP32X100 UNIVERSAL ID/OD GRINDER
12.6" x 39.4" TOYODA "HIGH-PRECISION" JAPANESE
UNIVERSAL ID/OD CYLINDRICAL GRINDER
SWING ...................................... 12.6"
DISTANCE BETWEEN CENTERS ................... 39.4"
MAX. LOAD BETWEEN CENTERS .................. 330 LBS.
INFINITELY VARIABLE TABLE SPEED ............ 2" TO 157"
TABLE SWIVELS, COUNTER-CLOCKWISE ........... 10 DEG.
CLOCKWISE ................... 3 DEG.
WORKHEAD SPINDLE TAPER ..................... #4MT
SPINDLE NOSE ............................... #A2-5"
INFINIELY VARIABLE SPINDLE SPEEDS .......... 16 TO 500 RPM
DIAMETER OF WORK SPINDLE ................... 0.79"
WORKHEAD SWIVELS, COUNTER CLOCKWISE ........ 90 DEG.
CLOCKWISE ................ 30 DEG.
GRINDING WHEEL SIZE ........................ 16" x 2" x 5"
GRINDING SPINDLE SPEED ..................... 5,900 SFPM
TOTAL INFEED STROKE OF WHEELHEAD ........... 8.7"
HANDWHEEL FEED STROKE ...................... 7.1"
POWER RAPID HYDRAULIC FEED STROKE .......... 1.6"
AUTO PLUNGE INFEED RATE ................. 0.002" TO .00004"
AUTOMATIC INFEED OF THE GRINDING WHEEL
PER TABLE REVERSAL ............. 0.00002" TO .003" ON DIA.
AUTOMATIC INFEED AMOUNT .................. 0 TO 0.0315"
ONE REV. OF HANDWHEEL FEEDS THE WHEELHEAD .. 0.04"
INFEED HANDWHEEL GRADUATION ................ 0.00002"
MINIMUM INFEED INCREMENT ................... 0.00004"
APPROX. DIMS. ...................... 108"L-R X 71'F-B X 66"
APPROX. WEIGHT ............................. 8,000 LBS.
AUTOMATIC INFEED OF GRINDING WHEEL @ TABLE REVERSAL
RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMERS FOR TRAVERSE & PLUNGE CYCLES
FINE ADJUSTMENT KNOB FOR WHEEL INFEED (.00004" GRAD.)
AUTOMATIC LUBRICATION SYSTEM FOR WHEELHEAD & TABLE WAYS
ELECTRONIC AC VARIABLE SPEED DRIVE FOR WORKHEAD
WORKHEAD SPINDLE IS BOTH "LIVE" & "DEAD"
PLC CONTROL IN MACHINE'S ELECTRICAL CABINET
5 H.P./3/60/230-460 VOLT WHEEL DRIVE MOTOR
COMPLETE COOLANT SYSTEM, WITH SPLASH GUARDS, PIPNG, COOLANT
TANK, BUT NOT INCLUDING A COOLANT PUMP
DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT
** F.O.B. OUR HARRISON, NJ WAREHOUSE**
