Cnc mill/router/plasma 4 axis kit 220W ac servo motor

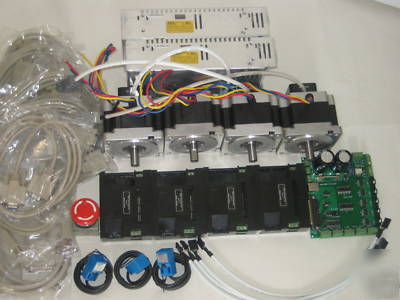

New DMM Technology Dyn2 AC Servo 4-axis CNC Controller kit with 220W brushless servo motor.
Each motor comes pre-equipped with a DMM Tech. absolute rotary magnetic encoder.
Direct drive for small desktop CNC like sherline mill, Direct drive or 2:1 Belt/Gear reduction for medium benchtop CNC,
3:1 Belt/Gear reduction for larger CNC like Bridgeport
- 4x 220W NEMA34 AC Servo Motor, Rated 3000rpm, Rated 0.7Nm(100 Oz-In), Peak 2.1Nm(300 Oz-In)
- 1x DMM Tech. opto-isolated NEW Break-out Board for Mach3 etc, isolated PWM analog output for spindle, Charge Pump relay output, hardware logic to stop servo.
- 3x Indcutive 5mm proximity swicthes
- 2x 120Vac or 220Vac input, +48Vdc, 7.3A, 350W output DC power supplys, CE certified
- 1x DMM Tech tune-up software
- 4x 1ft cables between breakout board and drives
- Rated current 7.5A, Peak (10sec.) 18A, single +24 ~ +48Vdc operation, Max 60Vdc
- Opto-isolated 25kHz PWM amplifier, reliable true sinusoidal switching
- Serial interface(UART,SPI),Pulse/Direction or CW/CCW,analog.
- USB and RS232 - PC interface for servo tune up, Win98/xp/2000/Vista
- 32bit RISC microcontroller all digital closed loop servo control
- Torque loop by magnetic flux field orientation technology
- Position/Speed closed servo loop by using advanced control theory
- Built in Point to Point motion as S-curve
- Built in Linear & Circular coordinated motion for XY,XZ,YZ Plane
- Fast motor servo response, 10 ms position response time
- Over Current,Over Heat/Power,Position lost follow,Over Voltage protection
- Low EMI, Small size 3"x 4"x 1"
- NEMA34 Standard mount configuration
- Comes with native DMM controller program to run G-code, and Point to Point motion for industrial automation.
- Custom software design for special movement
Please visit for detailed specifications.
