Nema 23 step, stepping, stepper motor LH2318-M57 ead

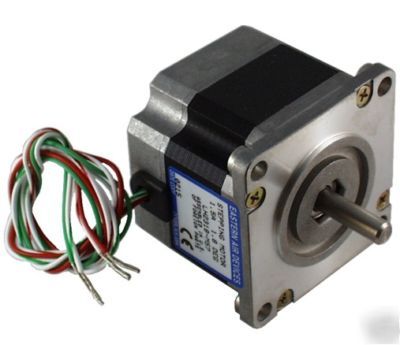

This is a Brand New motor from EAD Motors. LH2318-M57 is a 1.8deg (200 steps/revolution) NEMA 23 step motor with 90 oz-in holding torque ( 63.6 N-cm ). Four wires 12" long allow connection to bipolar drivers only. Will not work with unipolar drivers. This is low inductance motor and it will perform well in any microstepping and fast application. The shaft is standard 0.25" diameter ( 6.35mm) and 1.75" (44mm) long.
We recommend the BSD-02LH Microstepping Driver to use with this motor. It will also work with any bipolar driver rated at least 1.5A/phase.
Recommended power supply should deliver 24Vdc, but because this motor is rated for only 3.6V it will work very well with 12V and even as low as 9V power supplies.
Data sheet and connection diagram can be found here: http:// /ead-lh2318-m57.html
Use it for your CNC machine or robotic project and save money.
Note: EAD Motors also known as Eastern Air Devices is now part of ElectroCraft, Inc.
This motor will not last long at this price so please hurry up and don't wait with purchasing.
