New focus 9852 classic corner mount with 2" optic lens

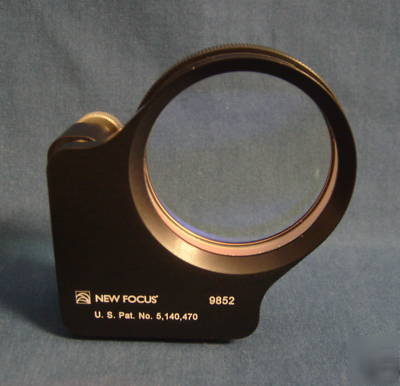

New Focus 9852 Classic Corner Mount with 2" Optic Lens
By centering the optic at the fourth corner of the square formed with the three adjustment screws, you get tilt, tilt without translation, and pure translation all in a single mount. For pure translation, simply turn all knobs the same amount. (A 1 error in one knob results in only 0.0012 tilt in the face plate.) For tilt without translation, use two knobs, or for applications when translation is less important, adjust the tilt with just one knob.
*Here is a link to New Focus with specifications on this mount: http:// /products/?navId=3&theView=modelGroupDetail&productLineId=4&productGroupId=227&modelGroupId=1068
