New hydraulic gear pump- group 2- 16CC/rev

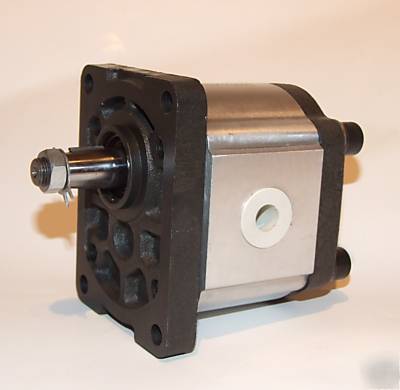

HYDRAULIC GEAR PUMP, GROUP 2, 16CC/REV-
Aluminium body with cast iron end covers (to withstand higher pressures)
16cc/rev displacement (delivering 24LPM @ 1500rpm)
4 bolt European mount, 1:8 taper shaft
Outlet port- 1/2" BSP threaded
Clockwise rotation (anti-clockwise available on request)
Pressure- 200 bar working, 250 bar max.
Speed- 2000rpm rated, 3500rpm max, 500rpm min

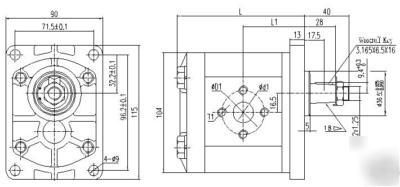

From drawing- dimension L- 114mm, L1- 53mm
New, quality pumps at lower than trade prices- visit my shop to see the range- try to find better!
Postage to N.I and Highland Islands- 19.00
Please ask for multiple items postage price
