Programmable timer switch din rail mount staircase ZA3

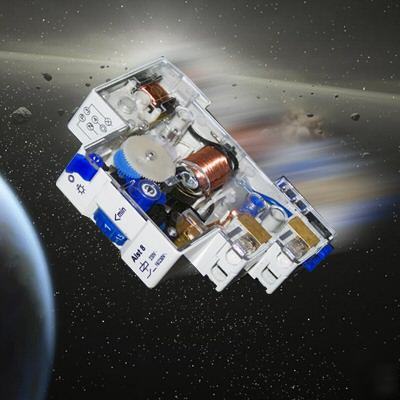

Our AL-ST is a module timer / time switch clock for the control of all 220V electric circuits such as stairway light, outside lights, garage lighting or to save energy and lower power consumption. It is designed for the fast assembly on DIN rails and therefore is suitable for almost all electrical house installations / fuse boxes.
In 30 seconds steps 12 switching times can be choosen from 1 - 7 minutes. The desired time is simply selected by the blue wheel. No complicated programming necessary: Simply select - Ready! If you have to by-pass the timer for any case to get a steady power supply this can be done by a simple switch activation.
Voltage operation range: 180 - 264V 16A, 50/60Hz
Installation: DIN rail (DIN EN50022) 1TE: 17,5mm (DIN 43880)3 and 4-wire connection
Temperature range: -20 C to +70 C
Relative air humidity: to 75% - at short time value 95%
CE-konform EN61036, EN61010, EN61326
