Rocker switches ~ 4 pack ~ dpdt ~ on-on ~ on-off

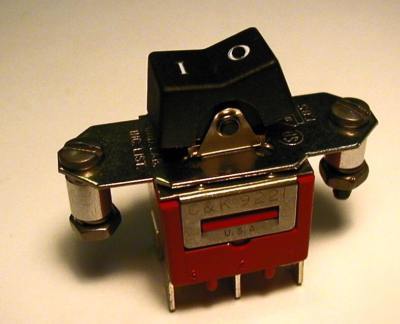

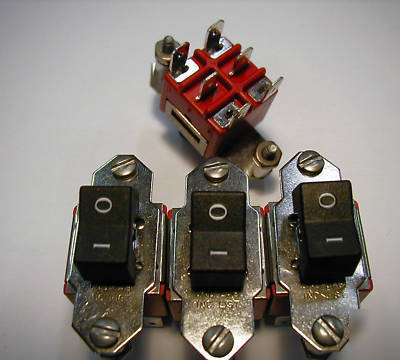

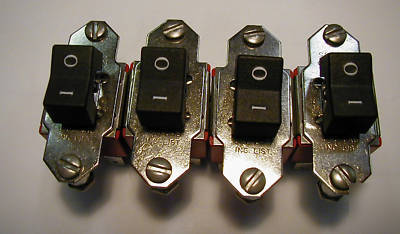

I have for sale, New Rocker Switches, in 4 packs. They're Double Pole Double Throw, (DPDT), with 6 solder lugs that also fit push on connectors. The rocker has 2 positions, ON and ON. Of course they can be used as single or double pole ON/OFF switches too, by not connecting all the lugs. Or wire the lugs in parallel to get a higher rating. Great for reversing DC current too. These switches give you several possibilities.

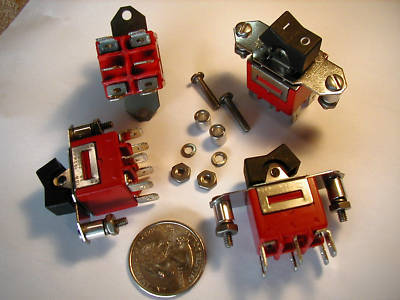

The red body is approximately 3/4" square. The mounting holes are approximately 1 3/8" apart and the overall length is 1 5/8". Each switch comes with 2 stainless steel screws, 2 stainless lock washers, 2 stainless hex nuts and 2 aluminum spacers. These are nice because a switch screwed down is generally more solid than one that's snapped in, and the square hole size is less critical, plus they can be mounted closer side to side. They're rated at 10 amps @ 125 VAC, and 5 amps @ 250 VAC. They're made in the USA.
