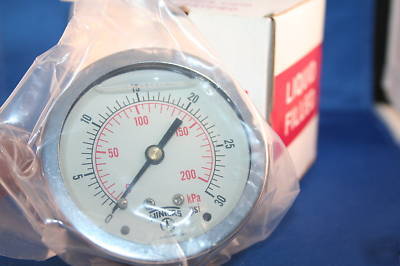

Winters gauge - PFQ902-SF25
Winters Premium Gauges PFQ SERIES - STAINLESS STEEL LIQUID FILLED GAUGES P/N: PFQ902-SF25 RANGE: 0-30 psi/kPa DIAL: 2.5", White Aluminum with Black and Red Markings LENS: Polycarbonate RING: AISI 304 SS, Crimp-On SOCKET: OT 58 Brass CONNECTION: Back - 1/4" NPT FILL LIQUID: Glycerin MOVEMENT: OT 59 Brass POINTER: Aluminum, Anodized Black OVER PRESSURE LIMIT: 25% GASKET MATERIAL: Silicone rubber for socket; EPDM for lens, filling plug and blow-out vent WORKING PRESSURE: 75% of full scale value AMBIENT/PROCESS TEMPERATURE: -14 to 150 deg. F ACCURACY: +/- 1.5% of Full Scale ENCLOSURE RATING: IP65
