64 step programmable thermocouple control controller

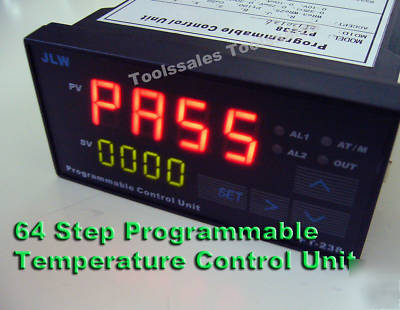

PT-238 JLW programmable control Unit
The 64 step Programmable Control Unit.
This Control Unit is best for control Oven and any type of heating/pumping device.
Suitable for temperature Control Process.
64 Step programmable, each step can select time, PID type and rate.
Internal Filter for noisy signal
AC/DC45-240V worldwide voltage
Over and Under limited Relay switch Output
RS-232 connection ( software not included)
9 type preset PID control Type:
Heating, cooling, stable, High temp, LOW temp,
T,R,J,WRe3-WRe25,B,S,K,E, Pt100, Cu50, type Thermocoupler
0-75mV, 0-30mV, 0-5V,1-5V, 10V, 0-10mA,0=20mA, 4-20mA Voltage/Current Input
3,4 Relay 1 Contact ( AC220V/3A, DC24V 5A)
5,6 Relay 2 Contact ( AC220V/3A, Dc 24V5A)
10~11 SSR ( solid stage relay) output 22V/25mA
Step 1 t-01=10, Sv01=25, (Sv02=100) C-01=0
Means : within 10 mins, start from 25 C heat up to 100C, Use PID type 1, which is a heating type PID , slot rate is 7.5C/mins
Step 2 t-02=13, Sv02=100 C-02=1
Means: Remain temp stable at 100C for 13mins
Means: active the J1 relay alarm output
Step 4 t-04=15 Sv04=100 C-04=0
Means in 15mins, increase temperature to 250C, rate is 10C/mins, use group 1 PID setting.
Means in 8 mins, drop the temperature from 250 down to 170, use the PID group 3.
Means control halt and set the temp in 170C, usd PID group 2
Means release the Jl relay contact
Base on above setting to the unit, the controller is up to 64 step programmable temperature/ Time setting, Finer temperature curve control can be set by adding intermediate step in shorter time.
1 x PT238 64 step programmable Control Unit
