Allen-bradley JAIL040S502UC, RV4LAYSA502A pot. 5K ohms

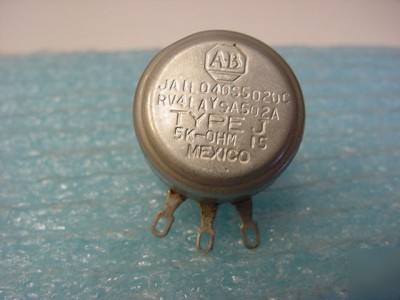

Allen-Bradley JAIL040S502UC, RV4LAYSA502A Pot. 5k Ohms
Allen-Bradley JAIL040S502UC, RV4LAYSA502A Pot. 5k Ohms, Type J. Selling as used but may not be. Guarantee not to be DOA. Stock 27-33-4.
Mounting Type Panel Mount Resistance 5.00 kOhms [Typ] Resistance Tolerance 10% Power 2.00 W [Max] Rotation 314.0 [Nom] Termination Style Solder Lug Actuator Type Slotted Shaft Actuator Diameter 6.320 mm [Typ] Actuator Length 15.875 mm [Typ] Actuator Material Stainless Steel Bushing Thread 3/8-32 UNEF Packaging Bulk Diameter 28.4500 mm [Typ] Length 13.610 mm [Typ] Operating Temperature -65 C [Min] Operating Temperature 125 C [Max] Bushing Diameter 9.530 mm [Nom] Bushing Length 12.700 mm [Typ] Housing Material Stainless Steel Power 2 W @ 70 C Resistive Material Carbon Shape Round Voltage 500.000 V [Max] Lead Free Status Lead Free RoHS Status RoHS Compliant
