Liquid N2 circulating cooling, system,reservoir,pump
Liquid N2 Circulating System,Reservoir,Pump
Level Controller,Audible Alarm,Hose, Manual

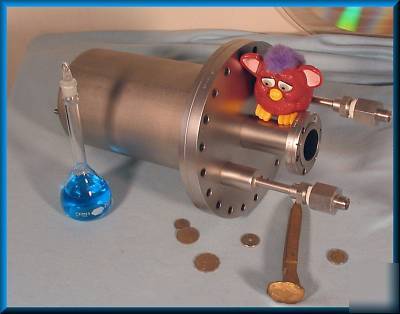

Convenient system to recirculate liquid Nitrogen ( LN2 ) or other liquids through equipment such as cryopanels, water jackets, chambers, etc. A typical 8" vacuum Cryopanel is shown in one photo ( but NOT included as part of this system. It is available separately. )

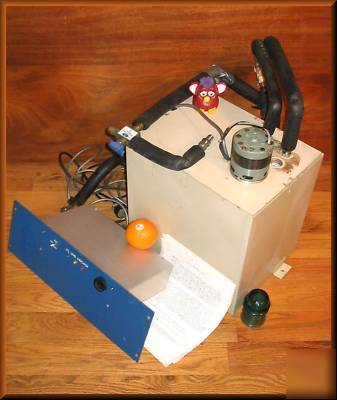

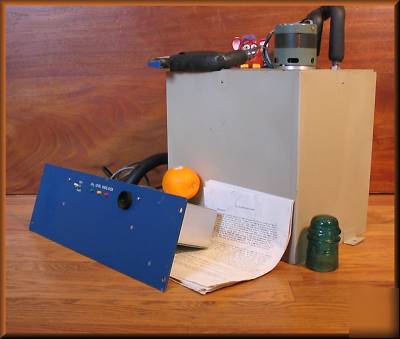

The system contains a 12 L reservoir with insulated pipes and valves for attachment to other equipment. Dual speed pump circulates the liquid through the attached pipes which also include valves. Typically uses around 20 to 30 L per day. System ncludes the Reservoir and the controller and the insulated Cu tubing shown with valves and Cajon fittings.

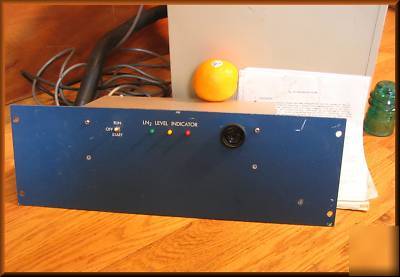

Overall size of the reservoir is about 14" x 14" x 14" and the controller is a standard 19" rack-mount unit operating on standard 115V. It also includes a complete Operating Manual and schematics. #1347
