New icom sm-25 for ic-F1821/F5061/F520/F111/610/FR3000

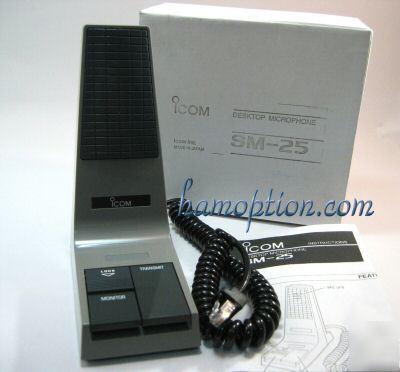

NEW ICOM SM-25 Desk mic with built in preamp to modular plug for IC-F300/S IC-F1000 IC-F1600 IC-400PRO IC-F1821/D IC-F1721/D IC-F2821/D IC-F2721/D IC-F5061 IC-F5063 IC-F6061 IC-F6063 IC-F520 IC-F521 IC-F620 IC-F621 IC-F111 IC-F121 IC-F211 IC-F221 IC-F111S IC-F121S IC-F211S IC-F221S IC-F610/F620 MT IC-FR3000 IC-FR4000
Large, easy-to-use switches for PTT and monitor functions(the monitor switch can be locked)
ICOM 8-pin modular cable supplied
The monitor switch can be used to activate the hanger function(monitor switch is connected to the mic-hanger line)
You can assign the monitor switch function to "monitor," "scan" or "Priority A."
Type:Unidirectional dynamic microphone(preamplifier built-in)
Output impedance: 500 ohms +-30% (at 1 kHz)
Sensitivity: -47.4dB +-4dB (at 1 kHz, 0dB=1V/u bar)
Power requirements: +8 V DC (supplied from the radio)
Dimensions: 70(W)x162(H)X150(D) mm
