S&c mark iii pmh-12 pad mounted switch gear hi voltage

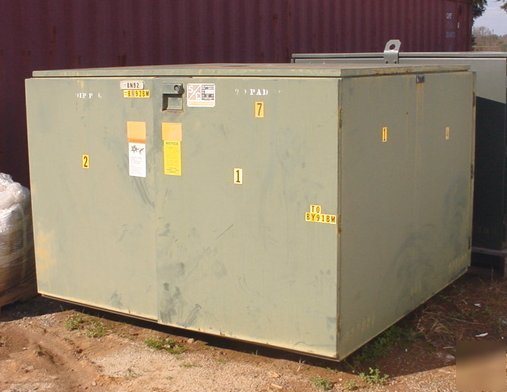

S&C MARK III PMH-12 PAD MOUNTED SWITCH GEAR HI VOLTAGE
S&C MANUAL PAD-MOUNTED SWITCH GEAR MARK III
Model: PMH-12 Catalog # 55373-DG1G2HJM
Nominal KV: 25 Max Design KV: 27
KV Bil: 125 Main Bus - Continuous RMS: 600 Amps
* Readily accessible components. Visibility of components allows operators to easily visualize the circuitry and see all components being operated.
* S&C Mini-Rupter Switches, operated by an external handle, for 600-ampere three-pole switching of source circuits.
* S&C Uni-Rupter for 200- or 400-ampere single-pole switching of tap circuits
* S&C Type SML-20 or SML-4Z Power Fuses
* S&C Fault Fiter Electronic Power Fuses
* Variety of current-limiting fuses
* Grounding provisions allow simple, direct, and visible grounding of cables. Standard on all models.
* Dual-purpose barriers guard against inadvertent contact with live parts when in the normal vertical position, provide isolation from bus and upper contacts when in the slide-in position. Standard on all models.
* Exceptionally rugged construction and the industries finest finish provide extraordinary resistance to the elements, keep high voltage components securely isolated from unauthorized access.
This unit appears to be in good used condition. $ave thousands! Make an offer!
