Tsi alnor EBT721-A1 balometer capture hood

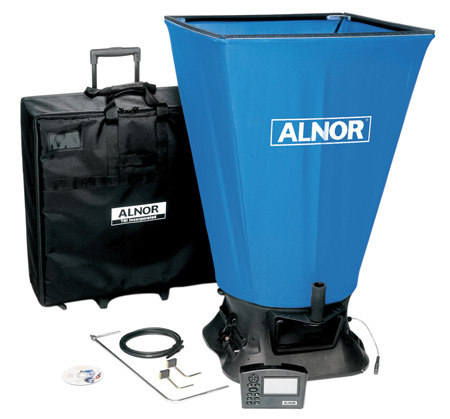

TSI ALNOR Balometer Capture Hood EBT721-A1
This item is Brand New in the box with the Manufactures Warranty & N.I.S.T Calibration Certificate.
(National Institute of Standards & Technology)
The EBT721 Balometer Electronic Balancing Tool features a detachable multi-purpose digital manometer that can be used with a variety of common test and balance tools, such as pitot, air foil, temperature, relative humidity probes or a 16-point velocity matrix. It will become the tool of choice for contractors and facilities personnel because of its ergonomic design and extremely light weight.
EBT720/EBT721 INCLUDED ACCESSORIES:
* 2' x 2' Air capture hood-frame-base
* Wheeled luggage-style carrying case
* LogDat2 downloading software and serial interface cable
* (8) AA rechargeable NiMH batteries
* NIST calibration certificate
15 in. H2O, (3735 Pa) 150 in. H2O maximum safe operating pressure
15 to 40 in. Hg (356 to 1016 Hg)
25 to 8,000 ft/min (0.125 to 40 m/s) pitot probes;
25 to 5,000 ft/min (0.125 to 25 m/s) air flow probe;
25 to 2,500 ft/min (0.125 to 12.5 m/s) velocity matrix;
25 to 2,500 ft3/m (42 to 4250 m3/h) capture hood
-40 to 250 degrees F (-40 to 121 degrees C) probe dependant
0.00001 in. H2O (0.001 Pa) Static & Differential Pressure
0.001 in. Hg (1 mm Hg) Absolute Pressure
2% of reading 0.001 in. H2O, (0.025 mm H2O; 2% of reading 0.001 in. Hg) Absolute
3% of reading 7 ft/min (0.04 m/s) 25 to 8,000 ft/min (all velocity probes) > 50 ft/min
3% of reading 7 ft3 /min 25 to 2,500 ft3/min > 50 ft/min
0.5 degrees F (0.3 degrees C) from 32 to 160 degrees F (0 to 71 degrees C) typically 1.0 degrees F (0.6 degrees C) from -40 to 32 degrees F (-40 to 0 degrees C) and from 160 to 250 degrees F (71 to 121 degrees C)
For more information on this product please click here.
