10X20 landis 1R hydraulic universal cylindrical grinder

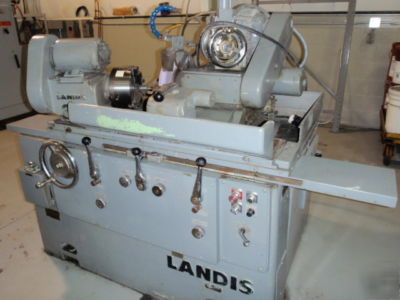

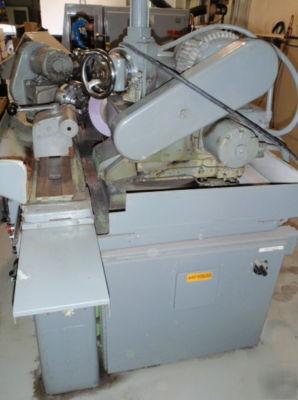

10" X 20" LANDIS HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER
NOMINAL SWING OVER TABLE .......................... 10"
MAXIMUM SWING OVER TABLE ....................... 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS ................... 20"
HYDRAULIC TABLE TRAVERSE ................ 2" TO 240" IPM
TRAVERSE PER TURN OF HANDWHEEL .................. 0.200"
TRAVERSE HANDWHEEL GRADUATIONS .................. 0.001"
SWIVEL TABLE GRADUATED ......... 20 DEGREES, 4" PER FOOT
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ....... 90 DEG.
WHEEL SIZE ................................ 12" DIAMETER
WHEELHEAD MOTOR 3 H.P
MAXIMUM WIDTH, FULL WHEEL ........................... 2"
MAXIMUM HYDRAULIC INFEED - ON DIAMETER .......... 0.090"
RAPID INFEED STROKE ................................. 1"
MINIMUM FEED GRADUATIONS - ON DIAMETER ....... 0.000050"
WORK DIA REDUCTION PER REV OF HANDWHEEL ................. 0.100"
WORK DIA REDUCTION PER REV OF FINE FEED KNOB .......... 0.001"
WORKHEAD SWIVELS TOWARD WHEELHEAD ........... 90 DEGREES
WORKHEAD SWIVELS AWAY FROM WHEELHEAD ........ 30 DEGREES
WORKHEAD SPINDLE SPEEDS (6) .............. 60 TO 600 RPM
WORKHEAD SPINDLE NOSE ............................ A2-5"
WORKHEAD MOTOR .................................. 1/4 HP
* UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD
* POWER RAPID WHEELHEAD ADVANCE & RETRACTION
* HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS
* CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED

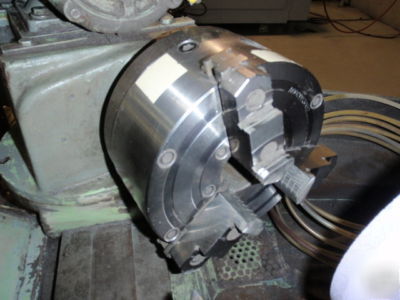

* 8 3 JAW ADJUSTRU MANUAL CHUCK, 2 PIECE JAWS
* HYDRAULIC TABLE TRAVERSE * AUTO PLUNGE FEED
* SPARKOUT TIMER * CHROME HANDLES

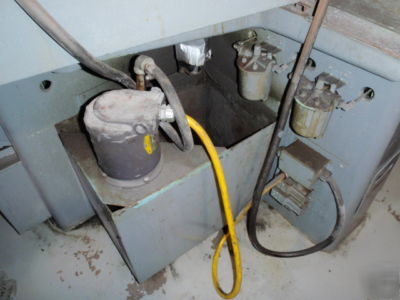

* "LIVE" WORKHEAD SPINDLE * SELF-CONTAINED COOLANT
* 12" GRINDING WHEEL * EXTRA NEW WHEELS
MACHINE IS PRESENTLY WIRED FOR 480 VOLTS
"Excellent" CONDITION * INSPECT UNDER POWER IN OUR WAREHOUSE *
Dimensions: 84 R-L x 72 F-B x 60 Tall Weight app. 5000 Lbs
