> 2 stellex 8-10GHZ yig oscillator + synthesizer + cable
2 stellex 8-10GHZ yig oscillator + synthesizer + cable
The Yig oscillator itself will work from 8-10GHz. The Yig PLL controller board will working wideband from 2-12GHz.

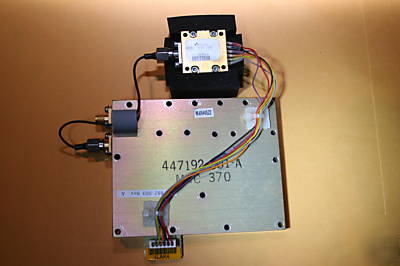

1 Yig Synthersizer board with cover.
1 Oscillator model: 6755-726F.
Connectors Stellex YIG and PLL
11_ YIG on/off*) 12_ LE (I^2Cbus)
13_ NC 14_ FO/LD output of LMX chip
19_ 10MHz. ref. out 20_ Tune Ref. 0-2.5V
*) connect 5V via 1kOhm to pin 11 for YIG on.
