AD8302 2.7GHZ gain - phase detector vna amplifier (X1@)
2700 MHz / 50 ohm / 14-lead TSSOP

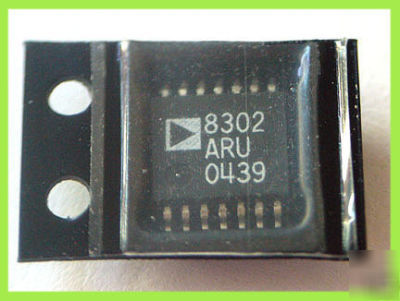

Here you are looking at one piece of AD8302 chip from Analog Devices. It is used to measure gain/loss and phase in receive, transmit and instrumentation application. Operating from 2.7V to 5.5V, the AD8302 has in input dynamic range of 60dB at 50 ohm system up to 2.7GHz operating frequency. It is very popular for homebrewing Vector Network Analyzer, which you can find all these information from the internet. Thanks to all those in the internet who contributes their ideas and thoughts.
1GHz Vector Network Analyzer designed by Robert Lacoste
