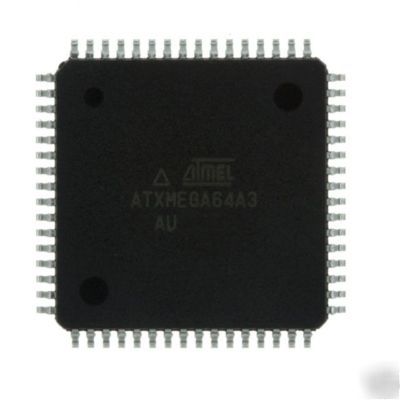

Atmel avr xmega ATXMEGA64A3 64-tqfp microcontroller
* High-performance, Low-power 8/16-bit AVR XMEGA Microcontroller
* Non-volatile Program and Data Memories
* 64 KB of In-System Self-Programmable Flash
* 4 KB Boot Code Section with Independent Lock Bits
* Four-channel DMA Controller with support for external requests
* Eight-channel Event System
* Seven 16-bit Timer/Counters Four Timer/Counters with 4 Output Compare or Input Capture channels
* - Three Timer/Counters with 2 Output Compare or Input Capture channels
* High Resolution Extensions on all Timer/Counters
* Advanced Waveform Extension on one Timer/Counter
* Seven USARTs IrDA Extension on 1 USART
* AES and DES Crypto Engine
* Two Two-wire Interfaces with dual address match (I2C and SMBus compatible)
* Three SPI (Serial Peripheral Interfaces)
* 16-bit Real Time Counter with Separate Oscillator
* Two Eight-channel, 12-bit, 2 Msps Analog to Digital Converters
* One Two-channel, 12-bit, 1 Msps Digital to Analog Converter
* Four Analog Comparators with Window compare function
* External Interrupts on all General Purpose I/O pins
* Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator
* Special Microcontroller Features
* Power-on Reset and Programmable Brown-out Detection
* Internal (32KHz, 2MHz, 32MHz) calibrated oscillators and External Clock Options with PLL
* Programmable Multi-level Interrupt Controller
* Sleep Modes: Idle, Power-down, Standby, Power-save, Extended Standby
* Advanced Programming, Test and Debugging Interfaces JTAG (IEEE 1149.1 Compliant) Interface for test, debug and programming PDI (Program and Debug Interface) for programming, test and debugging I/O and Packages
* 50 Programmable I/O Lines
* Operating Voltage: 1.6 3.6V
* Speed performance: 0 12 MHz @ 1.6 3.6V, 0 32 MHz @ 2.7 3.6V
Items are guaranteed to arrive in working order or will be refunded or replaced at our discretion. Thanks!
